Description

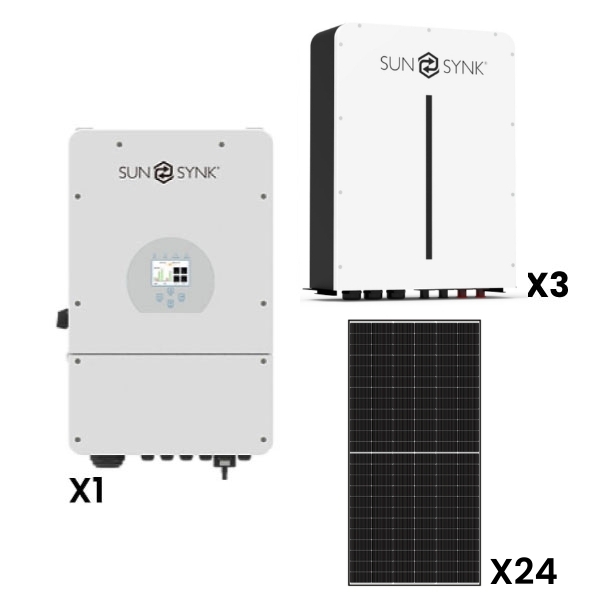

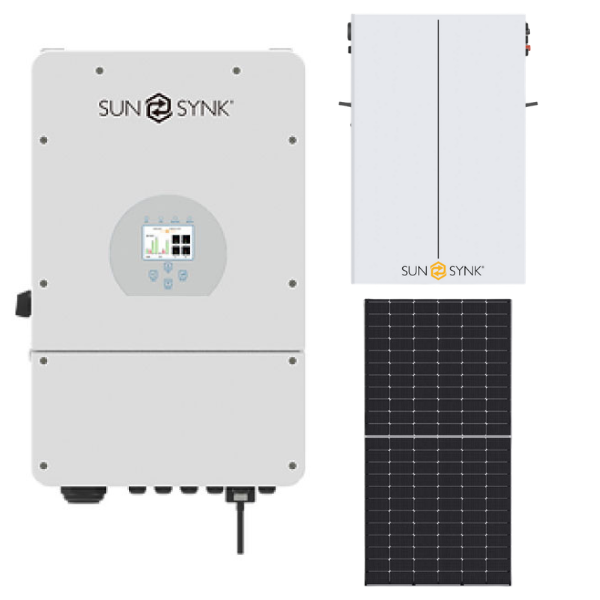

- Sunsynk 16kW Solar, Inverter & Battery Combo Deal – 1 x Sunsynk 16kW Inverter, 3 X 5kW Sunsynk Lithium Ion Battery & 24 X Tier 1 solar panels
- Whats Included:
- 24 x Tier 1 solar panels – specific brand & subject to stock availability
- 1 x SUNSYNK 16kW Hybrid Inverter (1 Phase) – SUNSYNK MAX
- 3 x SUNSYNK 5.12kW 100Ah LiFePo4 Lithium Ion Battery – SUN-X-5.12-F
More Details:
- Tier 1 solar panels –
- Specific brand & subject to stock availability – Tier 1 panels include Aiko, JA Solar, Canadian Solar, Jinko, Longi, Trina, Astronergy, Seraphim, TCL Solar, Megatron, NT Solar, Hanersun, Osda and Resun. Panels are available in sizes ranging from 340W up to 715W.
- Mounting Kits & Accessories Not Included – Sold Separately.
- Certain panel brands & models may require additional payment.
- Panels subject to availability in the area.
- T & C’s Apply
- SUNSYNK 16kW Hybrid Inverter
- Model SUNSYNK MAX
- Wi-Fi Ready – works via Sunsynk App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- The Most Powerful Low-voltage Inverter In The World.
- Achieves a Maximum Output Power of 16kW & Battery Charge Current of 300A
- Manages Power-flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
- Colourful Touch LCD
- Storing energy from diesel generator supported.
- Wi-Fi & GSM monitoring supported.
- Equipped with Visual power flow screen.
- Parallel/multi invert function grid-tied & off-grid.
- Grid Type: Single-Phase.
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge & Discharge Current: 300A
- Battery Charging Strategy: Self-Adaptation to BMS
- Maximum DC Input Power: 18000W
- MPPT Range: 250-450V
- Start-up Voltage: 150V
- Maximum On-Grid AC Power: 16000W
- Maximum Off-Grid AC Power: 13000W
- AC Output Rated Current: 65A
- Maximum AC Current: 70A
- Frequency Range: 45-55Hz
- Voltage Range: 211-264V
- Maximum Efficiency: 97.60%
- MPPT Efficiency: 99.90%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 43-60V
- Communication with BMS: CAN/RS485
- Fan Cooling
- Operation Temperature: -25°C to 55°C
- Installation Type: Wall Mounted.
- Weight: 34.5Kg
- Dimensions (W x H x D): 422 x 702 x 281 mm
- 5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery). T & C’s Apply
- Recommended Solar Panel Configuration:
- Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
- First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
- Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
- Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
- SUNSYNK 5.12kW 100Ah LiFePo4 Lithium Ion Battery
- Model SUN-X-5.12-F
- May require the Sunsynk Klik to be compatible with other batteries.
- Convenient Wall-Mounted or Floor Installation.
- Safe & Reliable LiFePO₄ Battery Chemistry.
- IP65 Protection Level – Suitable for Indoor or Outdoor Installation.
- Flexible Scalability – Recommended ≤3 Units (Max. 8 in Parallel).
- Depth of Discharge: 95%.
- High Cycle Life: >6000 Cycles @ 25°C @ 0.5C.
- Nominal Capacity: 100Ah
- Rated Voltage: 51.2Vdc
- Operating Voltage Range: 43.2Vdc – 57.6Vdc
- Nominal Energy: 5.12kWh
- Max Charge Current: 50A
- Max Discharge Current: 100A
- Operating Temperature:
- Charge: -10°C to 50°C
- Discharge: -20°C to 50°C
- Humidity: 5–95% RH (No Condensation)
- Altitude: <2000m
- Communication: RS485, CAN, Wi-Fi (Optional)
- Installation Type: Wall-Mounted or Floor-to-battery
- Weight: 45kg
- Dimensions (W x D x H): 420 x 140 x 650 mm
- 5 Year Limited Product Warranty. T & C’s Apply
- Does Not Include Power Cables & Communication Cables for Inverters & Batteries (Sold Separately)
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
