Description

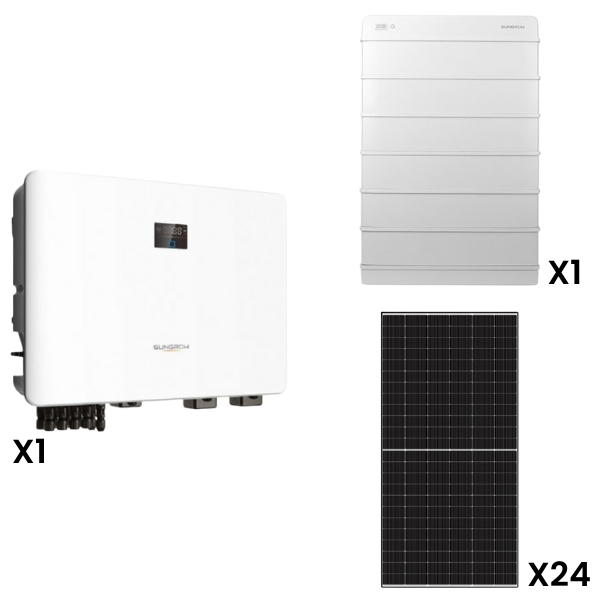

- Sungrow 10kW Solar, Inverter & Battery Combo Deal – 1 x Sungrow 10kW Inverter, 1 x 19.2kW Battery Package (6 x 3.2kW Battery Modules) & 24 x Sunova Solar 585W Solar Panels
- Whats Included:
- 24 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panel – SS-585-72MDH(T)
- 1 x Sungrow 10kW Hybrid Inverter (1 Phase) – SG-SH10.0RS
- 1 x Sungrow 19.2kWh Battery Package (Accessories Included) – SG-SBR192
More Details:
- Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
- Model SS-585-72MDH(T)
- Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
- Combines creative technology effectively & extremely improves the module efficiency & power output.
- 585W Solar Panel.
- Equipped with 144 Cells.
- 30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
- The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
- Excellent Low Irradiance Performance.
- Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
- Industry-Leading, Lowest Thermal Coefficient.
- Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
- Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
- 100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
- Number of Cells: 144 Cells
- Cell Type: N-Type Monocrystalline.
- Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
- Silver/Black Anodized Aluminium Alloy Frame.
- Junction Box: IP68, 3 Bypass Diodes.
- Connector: MC4 Compatible.
- Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
- Maximum Power: 585W (STC) & 436W (NOCT)
- Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
- Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
- Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
- Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
- Module Efficiency: 22.60%
- Power Tolerance: 0,+5W
- Maximum System Voltage: 1500V
- Maximum Rated Fuse Current: 25A
- Current Operating Temperature: -40°C to 85°C
- Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
- Weight: 27.2Kg
- Dimensions (L x W x H): 2278 x 1134 x 30 mm
- Mounting Kits & Accessories Not Included – Sold Separately.
- 15 Year Limited Product Warranty. T & C’s Apply
- Sungrow 10kW Hybrid Inverter (1 Phase)
- Model SG-SH10.0RS
- Residential Hybrid Single Phase Inverter.
- Flexible Application.
- Energy Independence.
- Smart Management.
- User Friendly.
- Recommended Max PV Input Power: 20000Wp
- Max PV Input Voltage: 600V
- Rated PV Input Voltage: 360V
- MPP Voltage Range: 40-560V
- No of Independent MPP Inputs: 4
- Batter Type: Li-ion Battery
- Battery Voltage Range: 80-460V
- Max Charge/Discharge Current: 50A
- Max Charge/Discharge Power: 10000W
- Max AC Power from Grid: 14500VA
- Rated AC Output Power: 10000W
- Max AC Output Apparent Power: 10000VA
- Max AC Output Current: 45.5A
- Rated Grid Frequency: 50/60Hz
- Max Efficiency: 97.5%
- European Efficiency: 97.1%
- Operating Ambient Temperature Range: -25°C to 60°C
- Natural Cooling.
- Max Operating Altitude: 4000m
- Noise Level: 45dB(A)
- Display: LED Digital Display & LED Indicator.
- Communication: RS485, WLAN, Ethernet, CAN
- Degree of Protection: IP65
- Mounting Method: Wall-Mounting Bracket
- Weight: 29Kg
- Dimensions (W x H x D): 605 x 435 x 181 mm
- 10 Years Standard Product Warranty. T & C’s Apply
- Recommended Solar Panel Configuration:
- Min 6 Panels – Max 36 Panels (Panel Size: 550W Panels) (9 Panels per MPPT)
- Based off SUNOVA SOLAR Solar Panel Specifications
- Sungrow 19.2kWh Battery Package (Accessories Included)
- Model SG-SBR192
- High-Performance.
- Flexibility.
- Safety.
- Easy Installation.
- Technical Properties (6 x Modules)
- LiFePo4 Prismatic Cell.
- Battery Module: 3.2kWh (33Kg) per Module.
- Usable Energy: 19.2kWh
- Nominal Voltage: 384V
- Rated DC Power: 11.52kW
- Operating Voltage: 300-438V
- Short Circuit Current: 3500A
- Operating Ambient (Charge): 0°C to 50°C
- Temperature Range (Discharge): -20°C to 50°C
- Natural Convection Cooling.
- Max Operating Altitude: 4000m
- Display: SOC Indicator, Status Indicator.
- Communication Interface: CAN
- Degree of Protection: IP55
- Installation Location: Indoor/Outdoor
- Mounting Method: Floor Stand
- Weight: 213Kg
- Dimensions (W x H x D): 625 x 935 x 330 mm
- 10 Year Limited Product Warranty. T & C’s Apply
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
