Description

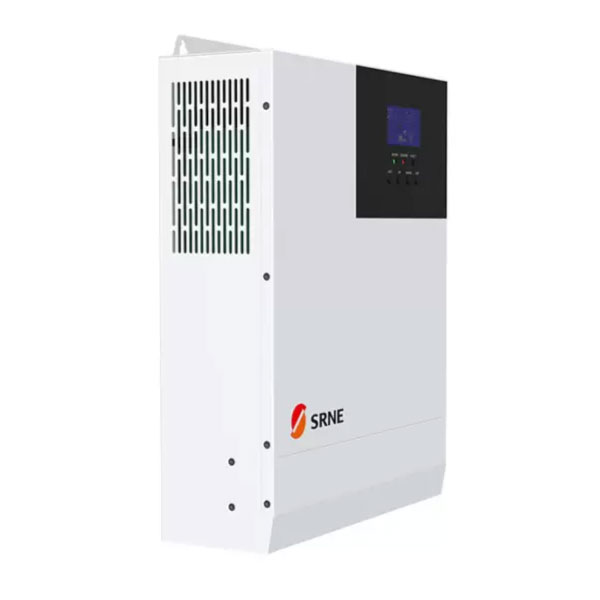

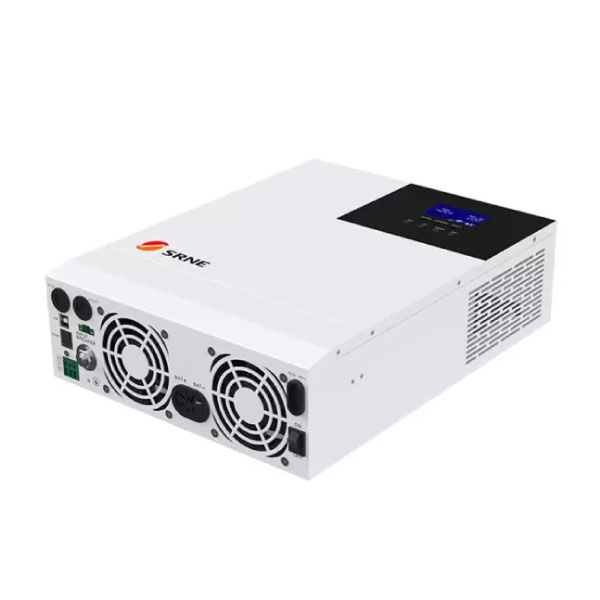

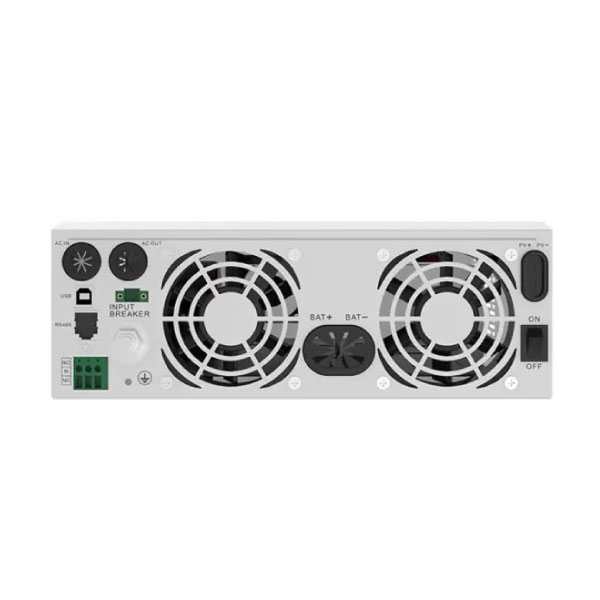

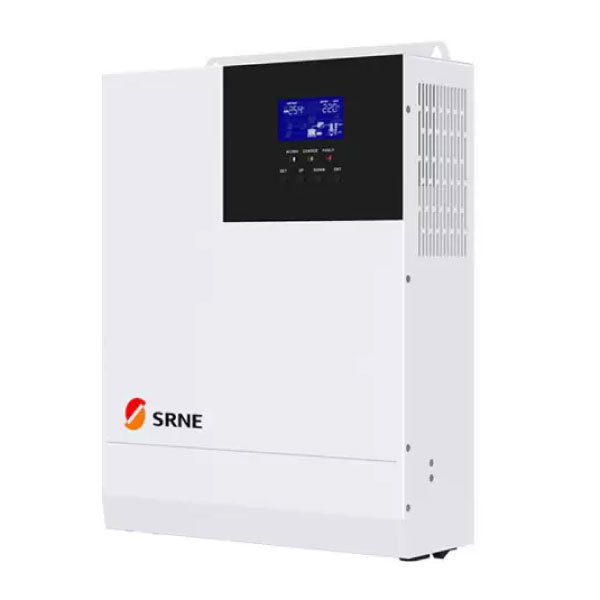

- SRNE 3kW Off Grid Inverter – SR-HF2430S60-100
- Model HF2430S60-100
- All-In-One Solar Charge Inverter.
- Equipped with LCD Screen, LED Indicators & Touch Button.
- Integrates solar energy which means charging energy storage.
- Full digital voltage & current double loop control, advanced SPWM Technology & output of Pure Sine Wave.
- Equipped with x2 Output Modules: Main bypass & Inverter output and Uninterrupted power supply.
- x4 Charging Modes Available: Only Solar, Mains Priority, Solar Priority and Mains & Solar Hybrid Charging.
- Advanced MPPT Technology with an efficiency of 99.9%
- On/Off Rocker switch for AC Output control.
- Power saving mode available – reduces no-load loss.
- Intelligent variable speed fan – efficiently dissipates heat & extends system life.
- Allows access of Lead-acid battery & lithium battery.
- Lithium battery activation – by both mains & PV.
- Equipped with multiple protection functions: Overload, short circuit & over current.
- User-friendly communication modules: RS485 (GPRS, Wi-Fi, Bluetooth), CAN, USB etc.
- Suitable for computer, mobile phones, internet monitoring & remote operations.
- Rated Input Voltage: 220/230V
- Frequency: 50/60Hz (Auto Detection)
- Output Voltage Waveform: Pure Sine Wave
- Rated Output Power: 3000W
- Rated Output Voltage: 230V
- Loaded Motor Capacity: 2HP
- Rated Battery Input Voltage: 24V
- Power Saving Mode: Load ≤25W
- Battery Type: Lead Acid or Lithium Battery
- Max Charge Current: 80A
- Max PV Open Circuit Voltage: 100Vdc
- PV Operating Voltage Range: 30-100Vdc
- MPPT Voltage Range: 30-95Vdc
- Battery Voltage Range: 18-33Vdc
- Operating Temperature: -15°C to 55°C
- Storage Temperature: -25°C to 60°C
- Noise Level: ≤60dB
- Weight: 6.2Kg
- Dimensions (L x W x D): 378 x 280 x 103 mm
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- 2 Year Limited Product Warranty. T & C’s Apply
- Free Delivery Nationwide – South Africa
- Recommended Solar Panel Configuration:
- Min 2 Panels – Max 2 Panels (Panel Size: 180W Panels Only)
- Based off GSun Solar Panel Specifications
