Description

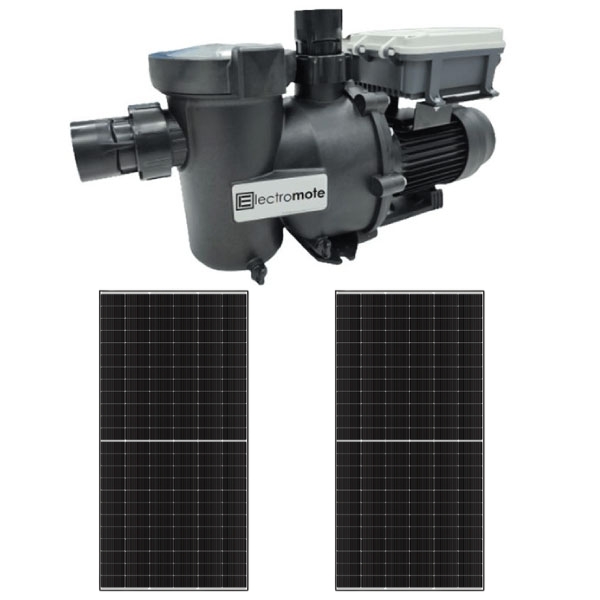

- Solar Panel & Solar Pool Pump Combo Deal – 2 X Sunova 585W Solar Panels & 1 X Electromote Solar Pool Pump
- Whats Included:
- 2 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panels – SS-585-72MDH(T)
- 1 x Electromote Solar Pool Pump 0,75kW – 1,1kW
More Details:
- Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
- Model SS-585-72MDH(T)
- Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
- Combines creative technology effectively & extremely improves the module efficiency & power output.
- 585W Solar Panel.
- Equipped with 144 Cells.
- 30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
- The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
- Excellent Low Irradiance Performance.
- Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
- Industry-Leading, Lowest Thermal Coefficient.
- Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
- Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
- 100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
- Number of Cells: 144 Cells
- Cell Type: N-Type Monocrystalline.
- Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
- Silver/Black Anodized Aluminium Alloy Frame.
- Junction Box: IP68, 3 Bypass Diodes.
- Connector: MC4 Compatible.
- Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
- Maximum Power: 585W (STC) & 436W (NOCT)
- Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
- Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
- Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
- Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
- Module Efficiency: 22.60%
- Power Tolerance: 0,+5W
- Maximum System Voltage: 1500V
- Maximum Rated Fuse Current: 25A
- Current Operating Temperature: -40°C to 85°C
- Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
- Weight: 27.2Kg
- Dimensions (L x W x H): 2278 x 1134 x 30 mm
- Mounting Kits & Accessories Not Included – Sold Separately.
- 15 Year Limited Product Warranty. T & C’s Apply
- Electromote Solar Pool Pump
- Model Electromote Solar Pool Pump
- The Electromote Solar Pool Pump Allows You to Run Any Pool Pump with The Power of The Sun.
- Save On Electricity with this Off the Grid Solution.
- Built-In Variable Speed Drive.
- Built-In Protection for Water Flow, Over & Under Current
- Integrated Control panel.
- Equipped with User-Friendly Control Panel – LED Indicator Light.
- Control Panel Equipped with Voltage (V), Speed (RPM), Current (A) & Power (W) Indicator Lights.
- Insolation Class: F
- Water Resistant: IP55
- PV Power Source (Direct Photovoltaic)
- DC Motor – Permanent Magnet Brushless Motor.
- Speed Range: 500 to 2850 RPM
- Maximum Operating Temperature: 55°C
- Maximum Pump Flow: 22.4m3/h
- Pump Flow Rate – 10m of Head: 16.3m3/h at 2850 RPM
- Motor Output Power: 1.0 HP at 750W
- Nominal Voltage: 72Vdc
- Maximum Pump Pressure: 19.1mH 2O (1.9 bar)
- TEFC Construction.
- Recommended Solar Panel: 380W (Not included)
- Solar Panel Connection: 4 Panel Series Parallel Connection (Not included)
- Solar Panel to be bought separately.
- Professional Installation Required (Not included)
- 12 Month Warranty.
- *Pays for itself within two years – based of electrical powered pool pump consumption of 1,1kW at R2,558 P/kWh at running time per day of 8 hours all year round.
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
