Description

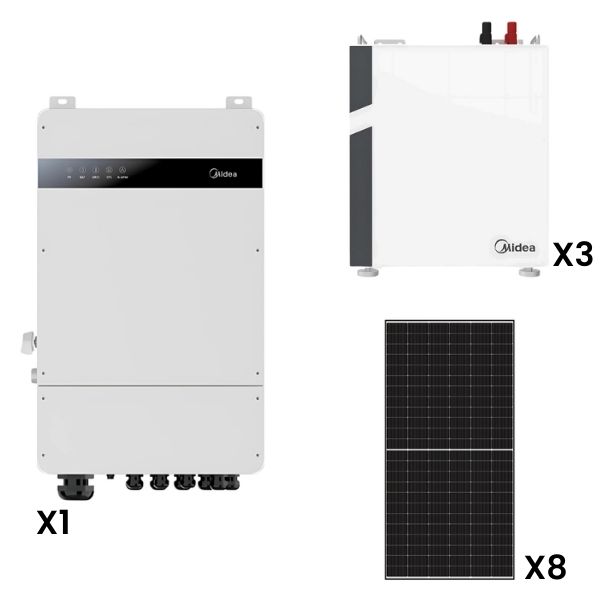

- Midea 8kW Solar, Inverter & Battery Combo Deals – 1 x Midea 8kW Inverter, 3 x 5kW Low Voltage Energy Storage & 8 x Sunova 585W Solar Panels
- Whats Included:
- 8 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panel – SS-585-72MDH(T)
- 1 x Midea 8kW ESS Hybrid Inverter (1 Phase) – ME-HS8L
- 3 x Midea 5.12kWh Smart Low Voltage Energy Storage – ME-B5L-S
More Details:
- Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
- Model SS-585-72MDH(T)
- Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
- Combines creative technology effectively & extremely improves the module efficiency & power output.
- 585W Solar Panel.
- Equipped with 144 Cells.
- 30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
- The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
- Excellent Low Irradiance Performance.
- Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
- Industry-Leading, Lowest Thermal Coefficient.
- Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
- Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
- 100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
- Number of Cells: 144 Cells
- Cell Type: N-Type Monocrystalline.
- Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
- Silver/Black Anodized Aluminium Alloy Frame.
- Junction Box: IP68, 3 Bypass Diodes.
- Connector: MC4 Compatible.
- Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
- Maximum Power: 585W (STC) & 436W (NOCT)
- Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
- Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
- Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
- Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
- Module Efficiency: 22.60%
- Power Tolerance: 0,+5W
- Maximum System Voltage: 1500V
- Maximum Rated Fuse Current: 25A
- Current Operating Temperature: -40°C to 85°C
- Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
- Weight: 27.2Kg
- Dimensions (L x W x H): 2278 x 1134 x 30 mm
- Mounting Kits & Accessories Not Included – Sold Separately.
- 15 Year Limited Product Warranty. T & C’s Apply
- Midea 8kW ESS Hybrid Inverter (1 Phase)
- Model ME-HS8L
- Wi-Fi Ready (Wi-Fi Dongle Included)
- Remote Monitoring via the Solarman Smart App
- Energy Independence
- Typical 10ms fast transition to backup mode during power outage
- 4 MPPT trackers
- Supports standby diesel generator
- Midea EMS Supports Maximum Self-consumption
- 78% energy self-consumption with Midea EMS connected with heat pump
- High Yield
- DC Max. efficiency 97%
- Battery charge/discharge efficiency 97.2%
- Max. charging/discharging current up to 190A
- Battery Type: Lithium-iron/Lead-acid
- Battery Voltage Range: 40~60V
- Max Charge Current: 190A
- Rated Output Power: 8000VA
- Noise Emission: <35dB
- Ingress Protection Degree: IP65
- Weight: 41Kg
- Operating Temperature: -25~60°C
- Dimensions (W x D x H): 460 x 225 x 760mm
- 5 Year Warranty. T & C’s Apply
- Midea 5.12kWh Smart Low Voltage Energy Storage
- Model ME-B5L-S
- Reliable and Friendly Installation.
- Safe & Reliable CATL Lithium Ion Phosphate (LFP) Cell
- CATL Grade-A Battery Cells Inside.
- Wall/Floor Mount with Mating Connector to Make Installation Easier.
- Compact size, 53kg Light Weight.
- Patented Charging & Discharging Technology.
- Auto Cell Balance Technology Ensures Longer Lifetime.
- Smooth Battery Charge/Discharge Current.
- Flexible Expansion
- Supports Multiple Expansion Options – Refer to User Manual
- Max Scale up to 5kWh x 15 Battery Units (max 75kWh on DC)
- Max Scale up to 3 x 5kWh Inverters in Parallel (max 75kWh batteries x 3 = 225kWh Max on AC)
- Nominal Voltage: 51.2V
- Nominal Energy: 5.12kWh
- Con. Charge/Discharge Current: 60A
- Max. Charge/Discharge Current: 99A
- Con. DisCharge DC Power: 3000W
- Max Discharge D Power: 5000W
- IP Grade: IP31
- Operating Temperature: 0-55°C (Charge); -20-55°C (Discharge)
- Installation Type: Wall Mounted or Floor Standing
- Weight: 53Kg
- Dimensions (W x D x H): 450 x 205 x 535 mm
- 5 Year Product Warranty & 10 Year Performance Warranty. T & C’s Apply
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
