Description

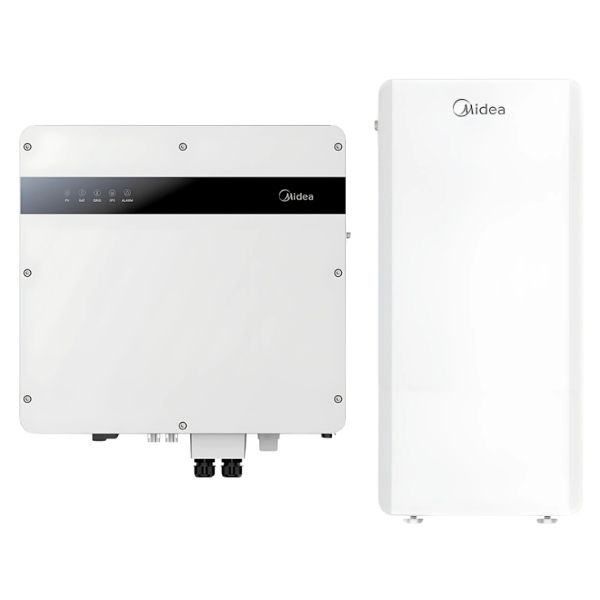

- Midea 5kW Inverter & Battery Combo Deals – 1 x Midea 5kW Inverter & 1 x 15kW Low Voltage Energy Storage
- Whats Included:
- 1 x Midea 5kW ESS Hybrid Inverter (1 Phase) – ME-HS5L-A
- 1 x Midea 15.46kWh Smart Low Voltage Energy Storage – ME-B15L-S
More Details:
- Midea 5kW ESS Hybrid Inverter (1 Phase)
- Model ME-HS5L-A
- Wi-Fi Ready (Wi-Fi Dongle Included)
- Remote Monitoring via the Solarman Smart App
- Energy Independence
- Typical 10ms fast transition to backup mode during power outage
- < 2 hours (5kW/5kWh system) high-efficiency circulation for charging and discharging
- Supports standby diesel generator
- Midea EMS Supports Maximum Self-sufficiency
- 90% energy self-sufficiency with Midea EMS – can connect with heat pump
- High Yield
- DC Max. efficiency 97.3%
- Battery charge/discharge efficiency 94%
- Battery Type: Lithium-iron/Lead-acid
- Battery Voltage Range: 40~60V
- Max Charge Current: 120A
- Max Charging Voltage: 60V
- Rated Output Power: 5000VA
- AC Voltage Range: 150~300
- Noise Emission: <35dB
- Weight: 25Kg
- Operating Temperature: -25~60°C
- Dimensions (W x D x H): 550 x 200 x 520mm
- 5 Year Warranty. T & C’s Apply

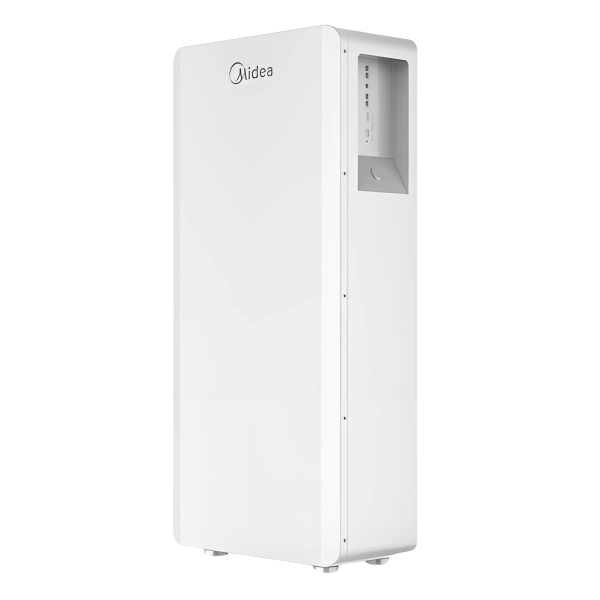

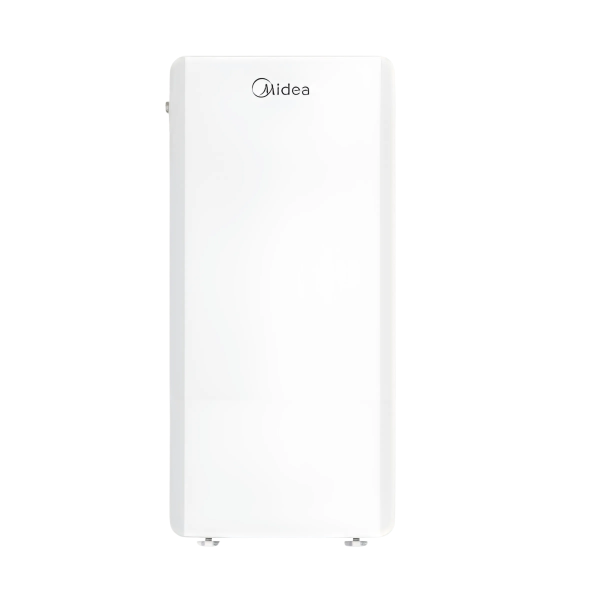

- Midea 15.46kWh Smart Low Voltage Energy Storage
- Model ME-B15L-S
- Reliable and Patented Charging & Discharging Technology
- CATL Grade-A battery cells inside
- Auto cell balance technology ensures longer lifetime
- Wall/floor mount with mating connector for easier installation
- Compact size, only 120kg light weight for 15kWh
- Flexible expansion to meet light commercial ESS system
- Supports multiple expansion options (refer to user manual)
- Max scale-up: 12kWh / 15kWh x 12 battery units in parallel (max 144kWh / 180kWh on DC
- Max scale-up to 3 x inverters in parallel (max 144kWh/180kWh batteries x 3 = 432kWh / 540kWh max on AC)
- Nominal Voltage: 51.2V
- Nominal Energy: 15.46kWh
- Maximum Charge/Discharge Current: 230A
- IP Grade: IP31
- Operating Temperature: 0-55°C (Charge); -20-60°C (Discharge)
- Installation Type: Wall Mounted or Floor Standing
- Weight: 120Kg
- Dimensions (W x D x H): 460 x 230 x 980 mm
- 5 Year Product Warranty & 10 Year Performance Warranty. T & C’s Apply
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
