Description
- Midea 5kW Inverter & Battery Combo Deals – 3 x Midea 5kW Inverter & 3 x 5kW Low Voltage Energy Storage
- Whats Included:
- 3 x Midea 5kW ESS Hybrid Inverter (1 Phase) – ME-HS5L-A
- 3 x Midea 5.12kWh Smart Low Voltage Energy Storage – ME-B5L-S
More Details:

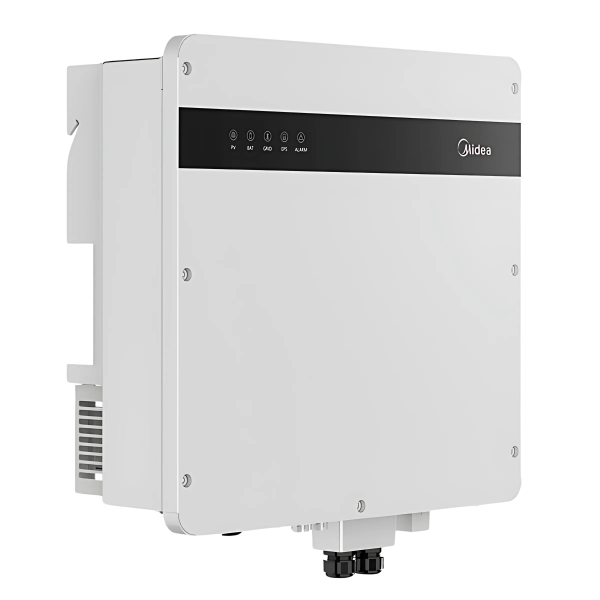

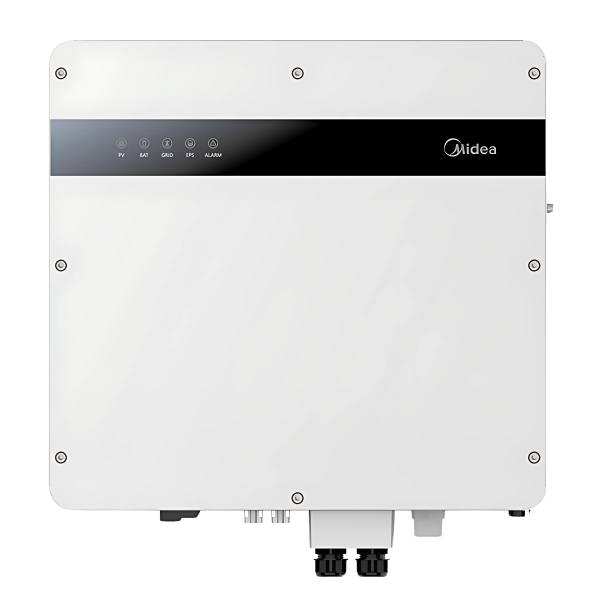

- Midea 5kW ESS Hybrid Inverter (1 Phase)
- Model ME-HS5L-A
- Wi-Fi Ready (Wi-Fi Dongle Included)
- Remote Monitoring via the Solarman Smart App
- Energy Independence
- Typical 10ms fast transition to backup mode during power outage
- < 2 hours (5kW/5kWh system) high-efficiency circulation for charging and discharging
- Supports standby diesel generator
- Midea EMS Supports Maximum Self-sufficiency
- 90% energy self-sufficiency with Midea EMS – can connect with heat pump
- High Yield
- DC Max. efficiency 97.3%
- Battery charge/discharge efficiency 94%
- Battery Type: Lithium-iron/Lead-acid
- Battery Voltage Range: 40~60V
- Max Charge Current: 120A
- Max Charging Voltage: 60V
- Rated Output Power: 5000VA
- AC Voltage Range: 150~300
- Noise Emission: <35dB
- Weight: 25Kg
- Operating Temperature: -25~60°C
- Dimensions (W x D x H): 550 x 200 x 520mm
- 5 Year Warranty. T & C’s Apply
- Midea 5.12kWh Smart Low Voltage Energy Storage
- Model ME-B5L-S
- Reliable and Friendly Installation.
- Safe & Reliable CATL Lithium Ion Phosphate (LFP) Cell
- CATL Grade-A Battery Cells Inside.
- Wall/Floor Mount with Mating Connector to Make Installation Easier.
- Compact size, 53kg Light Weight.
- Patented Charging & Discharging Technology.
- Auto Cell Balance Technology Ensures Longer Lifetime.
- Smooth Battery Charge/Discharge Current.
- Flexible Expansion
- Supports Multiple Expansion Options – Refer to User Manual
- Max Scale up to 5kWh x 15 Battery Units (max 75kWh on DC)
- Max Scale up to 3 x 5kWh Inverters in Parallel (max 75kWh batteries x 3 = 225kWh Max on AC)
- Nominal Voltage: 51.2V
- Nominal Energy: 5.12kWh
- Con. Charge/Discharge Current: 60A
- Max. Charge/Discharge Current: 99A
- Con. DisCharge DC Power: 3000W
- Max Discharge D Power: 5000W
- IP Grade: IP31
- Operating Temperature: 0-55°C (Charge); -20-55°C (Discharge)
- Installation Type: Wall Mounted or Floor Standing
- Weight: 53Kg
- Dimensions (W x D x H): 450 x 205 x 535 mm
- 5 Year Product Warranty & 10 Year Performance Warranty. T & C’s Apply
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
