Description

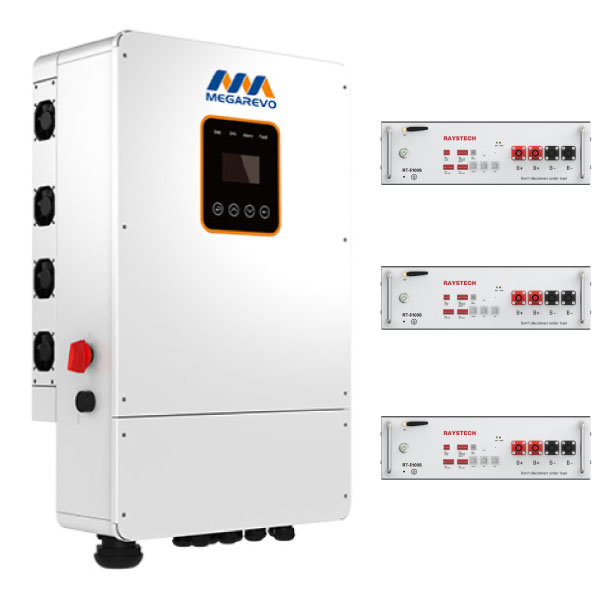

- MEGAREVO 8kW Inverter & Battery Combo Deal – 1 X MEGAREVO 8kW Inverter & 3 X 5.12Kwh 51.2V Raystech Lithium Ion Batteries
- Whats Included:
- 1 x MEGAREVO 8kW Low Voltage Hybrid Inverter – R8KL1
- 3 x Raystech 51.2V 5.12Kwh Lithium Ion Battery – RT-5100S
More Details:
- MEGAREVO 8kW Low Voltage Hybrid Inverter
- Model R8KL1
- REVO Residential Energy Storage Inverter.
- Wi-Fi, GPRS, 4G & APP (Optional)
- LCD & Touch Panel Display (Optional)
- Safe & Reliable.
- Friendly & Flexible.
- Intelligent & Efficient.
- Complete functional protection measures.
- Parallel Connection Supported.
- Diesel Generator Connection Supported.
- Equipped with 4 MPPT Trackers.
- Maximum Charge/Discharge Current: up to 250A
- Multiple Working Modes Optional.
- Ingress Protection: IP65
- Noise Level: <38dB(A)
- Battery Voltage: 48v
- Maximum Power: 12kW
- Maximum DC Voltage: 500V
- Battery Type: Lithium/Lead-Acid (Not Included – Sold Separately)
- Interface: CAN/RS485
- Fan Cooling.
- Operation Temperature: -25°C to 60°C
- Weight: 41Kg
- Dimensions (W x D x H): 430 x 220 x 710 mm
- 5 Year Limited Product Warranty. T & C’s Apply
- Recommended Solar Panel Configuration:
- Min 3 Panels – Max 24 Panels (Panel Size: 180W to 480W Panels) (6 per MPPT)
- Min 3 Panels – Max 20 Panels (Panel Size: 560W Panels) (5 per MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
- Raystech 51.2V 5.12Kwh Lithium Ion Battery
- Model RT-5100S
- LFP (Lithium Ion Phosphate) – highest safety.
- Able to go up to 8 Parallel – flexible to increase capacity without any other equipments or settings.
- Get 80% of initial capacity after use of 6000 cycles.
- Integrated with Wi-Fi modem (App Controlled)
- Easy Installation.
- High-Precision SOC.
- Nominal Voltage: 51.2V
- Nominal Capacity: 5120Wh
- Usable Capacity: 4864Wh
- Voltage Range: 48 to 56V
- Charge Current: 50A
- Discharge Current: 100A
- Charge Temperature: 0°C to 50°C
- Discharge Temperature: -10°C to 55°C
- Storage Temperature: -20°C to 60°C
- Humidity: 5 to 85%
- Altitude: <2000m
- IP Rating: IP20
- Installation Type: Cabinet or Wall Mounting.
- Weight: 44±0.5Kg
- Dimensions (L x W x H): 442 x 500 x 133 mm
- Refer To Brochure For Detailed Product Specifications.
- 10 Year Limited Product Warranty. T & C’s Apply
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
