Eckerle Mini-Condensate Pump – EE1800

R2,499.00 R1,999.00

Save 20%

Free Delivery!

Ideal for Units up to 60 000 Btu/Hr.



Add to quote

Secure Checkout

Hassle Free Returns

Compare

Description

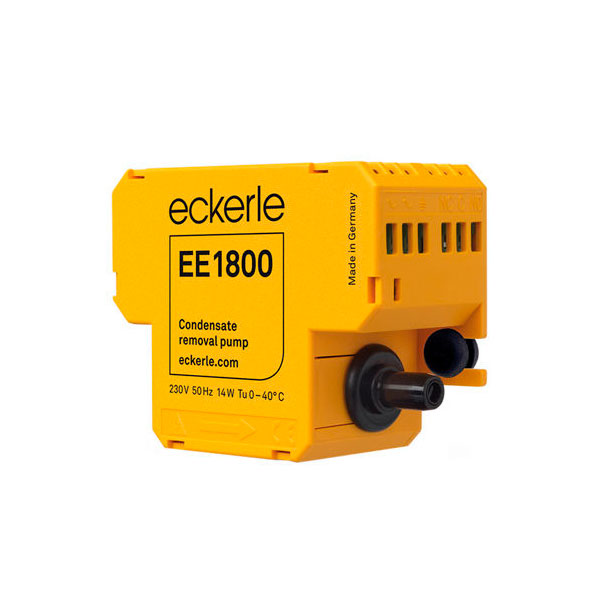

  • Eckerle Mini-Condensate Pump – EE1800.
  • Model EE1800.
  • For air-conditioners up to 20kW/ 60 000 Btu/Hr.
  • The float type pump is mainly used in air-conditioners with a limited space inside eg wall mounted mini split and ceiling units.
  • Having the same dimensions as the EE1000 and EE2000, the EE1800 can offer a higher flow rate – due to it’s optimised drive inside.

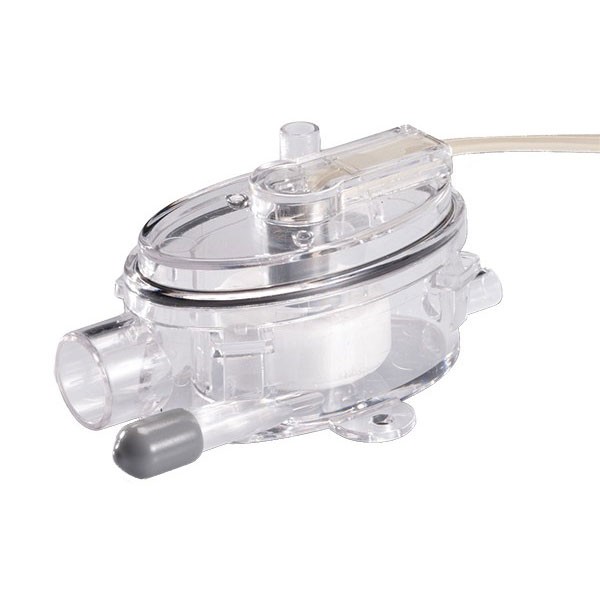

  • The EE1800 system consists of a pump unit and separate 3-level float switch sensor.
  • Beside the on/ off function, the system offers a high level, potential free NO/NC alarm switch (230 V, 8 A ohmic load).
  • It comes with mounting accessories like pads of double-sided Scotch tape to fix the float switch and an anti-shock mount for the pump unit.
  • Impervious to blockage/ contamination due to unique valve design and large piston bore.
  • Swiss drive inside.
  • Pump unit: 77 × 37.5 × 62 mm.
  • 230 V, 50/60 Hz.
  • Power consumption: Operation 14 W, Standby 1 W.
  • Sensor unit: 82 × 39 × 39 mm.
  • Max flow rate: 18 l/h.
  • Max delivery height: 10 m.
  • Max suction height: 2.5 m.
  • Float switch operating points: see rear of accessories “Float detector”.
  • 12 Month Warranty.
  • Free Delivery Nationwide – South Africa.
  • Excellent quality!
