Description

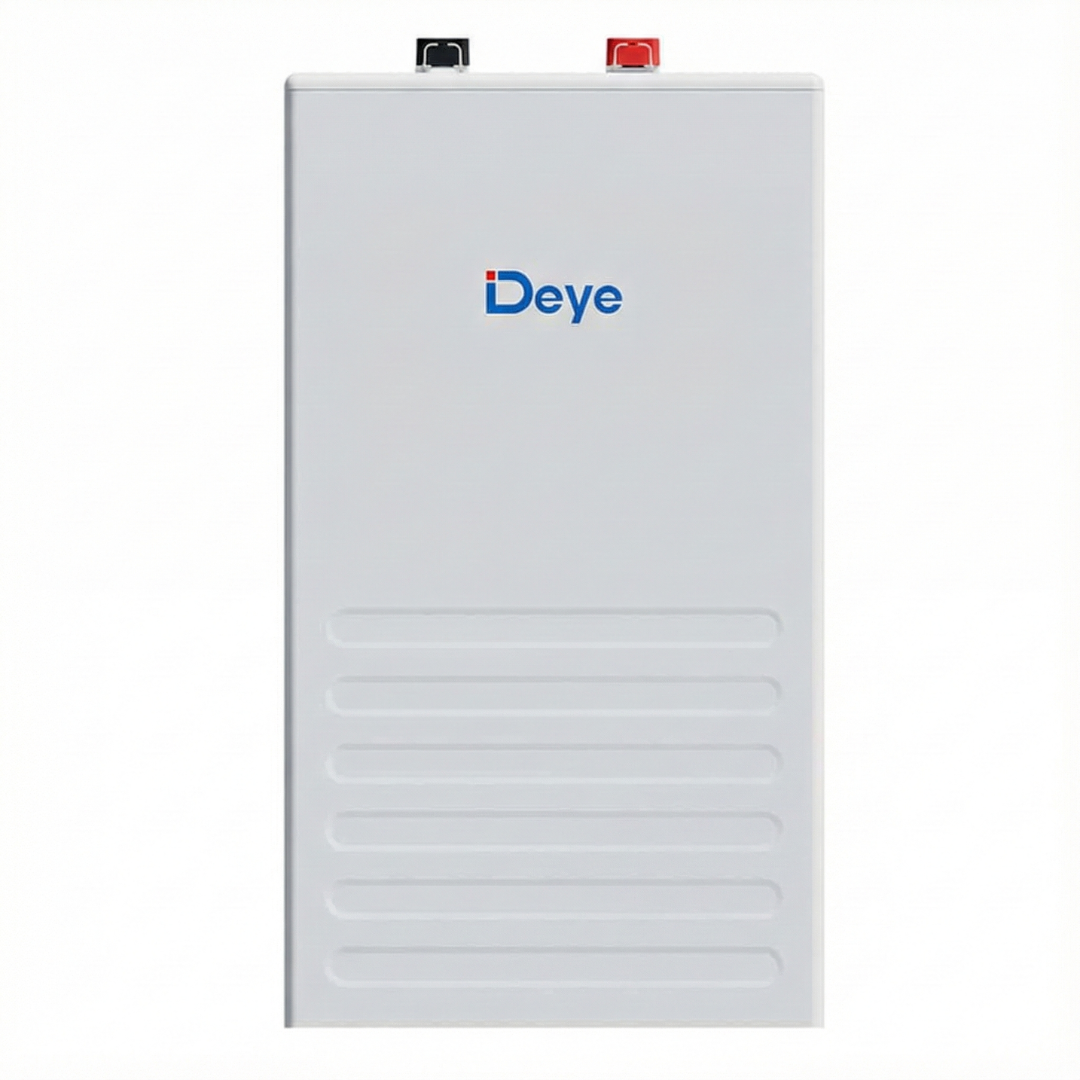

- Deye 16kW Wall-Mounted LiFePO₄ Battery – SE-F16
- The Deye SE-F16 is a high-performance 16 kWh LiFePO₄ battery designed for reliable energy storage in residential and commercial applications.
- Built with advanced BMS technology and natural cooling, it provides long-lasting performance, flexible scalability, and smart monitoring capabilities for modern ESS setups
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Capacity: 314 Ah / 16 kWh
- Nominal Voltage: 51.2 V (44.8 – 57.6 V operating range)
- Maximum Charge Current: 160 A (230 A peak for 10 s)
- Maximum Discharge Current: 160 A (230 A peak for 10 s)
- Depth of Discharge: 90% DoD
- Scalability: Up to 32 units in parallel (64 with CAN Box)
- Operating Temperature: –20 °C to 55 °C
- Storage Temperature: –35 °C to 55 °C
- Humidity: ≤ 95% (non-condensing)
- Installation: Wall-Mounted / Floor-Mounted / Stack-Mounted
- Protection: Advanced BMS with active fuse, IP21 rated housing
- LED Indicator & Buzzer: Displays SOC and operating status
- Communication: CAN2.0, RS485, Bluetooth + APP support
- Smart Energy Integration: Compatible with Deye Smart Energy Management System for load control and monitoring
- Dimensions (W × H × D): 400 × 708 × 233 mm
- Warranty: 5 years (extendable to 10 years) | Energy Throughput: 25 MWh
- Ideal for off-grid, hybrid, and backup power setups
- Product might vary from the depicted images.
- Refer to the product datasheet for detailed technical specifications.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa.
