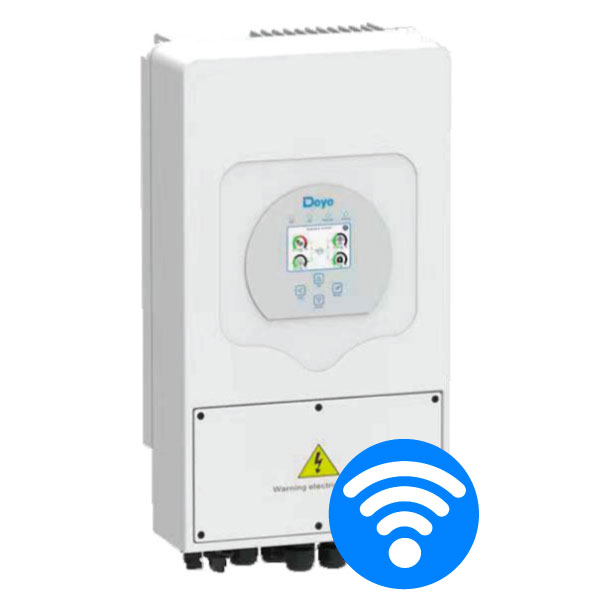

Deye 5kW Hybrid Inverter (1 Phase) – SUN-5K-SG01LP1-EU (Old Gen)

Original price was: R31,999.00.Current price is: R21,999.00.

Save 31% – Best Price in SA

Free Delivery!

Load Shedding Essential!

Wi-Fi Ready – Wi-Fi Dongle Included

Hybrid Inverter

MPPT Technology – 99.90% Efficiency

Download Brochure
Watch Installation Video
Watch Solarman App Video

Pay over 3 EQUAL zero-interest instalments of R7,333.00 with PayJustNow.
Find out how...

HOW IT WORKS

PayJustNow allows you to pay for your purchase over 3 payments with 0% interest and no fees. Pay a third at checkout and you get your goods as if you have paid in full. The remaining two instalments are debited on your specified instalment date.

Browse online or in-store and proceed to check-out

Choose PayJustNow as your payment method

Create your account and get an instant approval decision

Complete your transaction

WHAT YOU WILL NEED

BE OVER 18
YEARS OLD

BE AN SA
RESIDENT

HAVE A DEBIT OR
CREDIT CARD

HAVE A VALID
EMAIL ADDRESS

0% INTEREST. 3 PAYMENTS. NO STRESS.

WHY PAY ANY OTHER WAY?

Out of stock

SKU: DYE5KWHIN1P Categories: , , , , , , , , , Tag: Brand:

Description

  • Deye 5kW Hybrid Inverter (1 Phase) – SUN-5K-SG01LP1-EU
  • Model SUN-5K-SG01LP1-EU
  • Equipped with colourful touch LCD.
  • Wi-Fi Ready – works via Solarman App.
  • Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
  • DC Couple & AC Couple – retrofit existing solar system.
  • Maximum 16pcs parallel for on-grid & off-grid operation – multiple battery parallel supported.
  • 6 Time periods for battery charge/discharge.
  • Storing energy from diesel generator supported.
  • Grid Type: Single Phase
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge/Discharge Current: 120A
  • Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
  • Maximum DC Input Power: 6500W
  • MPPT Range: 125-425V
  • 2 x MPPT
  • Start-up Voltage: 150V
  • AC Output & UPS Power: 5000W
  • Maximum AC Power: 5500W
  • AC Rated Output Current: 221.7A
  • Maximum AC Current: 25A
  • Maximum Efficiency: 97.60%
  • Euro Efficiency: 96.50%
  • MPPT Efficiency: 99.90%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 40-60V
  • Communication with BMS: CAN/RS485
  • Smart Cooling
  • Operation Temperature: -25°C to 60°C, >45°C Derating
  • Installation Type: Wall Mounted.
  • Weight: 20.5Kg
  • Dimensions (W x H x D): 330 x 580 x 232 mm
  • Refer To Brochure For Detailed Product Specifications.
  • Product might vary from depicted images.
  • Graphics are for illustrative purposes only.
  • 5 Year Product Warranty (Extended to 10 Years if paired with Dyness/Volta Battery). T & C’s Apply
  • Free Delivery Nationwide – South Africa
  • Recommended Solar Panel Configuration:
    • Min 3 Panels – Max 14 Panels (Panel Size: 180W to 480W Panels) (7 Panels per MPPT)
    • Min 3 Panels – Max 10 Panels (Panel Size: 180W to 560W Panels) (5 Panels per MPPT)
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
