Description
- Deye 50kW Solar, Inverter & Battery Combo Deal – Deye 50kW Inverter, 24 x Deye 5kW 100Ah High Voltage Lithium Ion Batteries & 112 X Tier 1 solar panels
- Whats Included:
- 112 x Tier 1 solar panels – specific brand & subject to stock availability
- 1 x Deye 50kW Hybrid Inverter (3 Phase) – SUN-50K-SG01HP3-EU
- 24 x Deye 5.12kWh 100Ah LiFePo4 High Voltage Lithium Ion Battery – DEYE-HV-5.12-BOS-G
- 2 x Deye High Voltage Control Box For BOS-G – DEYE-BMU-BOS-G
- 2 x Deye Rack For 12 X High Voltage Batteries – DEYE-RACK-BOS-G
More Details:

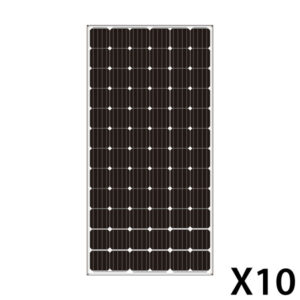

- Tier 1 solar panels –
- Specific brand & subject to stock availability – Tier 1 panels include Aiko, JA Solar, Canadian Solar, Jinko, Longi, Trina, Astronergy, Seraphim, TCL Solar, Megatron, NT Solar, Hanersun, Osda and Resun. Panels are available in sizes ranging from 340W up to 715W.
- Mounting Kits & Accessories Not Included – Sold Separately.
- Certain panel brands & models may require additional payment.
- Panels subject to availability in the area.
- T & C’s Apply
- Deye 50kW Hybrid Inverter (3 Phase)
- Model SUN-50K-SG01HP3-EU
- 100% Unbalanced output for each phase.
- Wi-Fi Ready – works via Solarman App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- Maximum output of up to 50% rated power.
- DC Couple & AC Couple to retrofit existing solar system.
- Maximum 10pcs parallel for on-grid & off-grid operation – Multiple batteries parallel supported.
- High Voltage Battery & Higher Efficiency.
- 6 Time periods for battery charge/discharge.
- Storing energy from diesel generator supported.
- Grid Type: Three Phase
- Protection Degree: IP65
- Noise Level: <45dB
- Maximum Charge/Discharge Current: 100A
- Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
- Maximum DC Input Power: 65000W
- Maximum DC Input Voltage: 1000V
- MPPT Range: 150-850V
- 4 x MPPT
- Start-up Voltage: 180V
- AC Output & UPS Power: 50000W
- Maximum AC Output Power: 55000W
- Maximum Efficiency: 97.60%
- Euro Efficiency: 97%
- MPPT Efficiency: 99.90%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 160-800V
- Communication with BMS: CAN/RS485
- Smart Cooling
- Operation Temperature: -40°C to 60°C, 45°C Derating
- Installation Type: Wall Mounted.
- Weight: 75Kg
- Dimensions (W x H x D): 527 x 894 x 294 mm
- 5 Year Product Warranty (Extended to 10 Years if paired with Deye Battery). T & C’s Apply
- Recommended Solar Panel Configuration:
- Min 5 Panels – Max 112 Panels (Refer to breakdown below for Panel set up per MPPT)
- First MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on first MPPT)
- Second MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on second MPPT)
- Third MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on third MPPT)
- Fourth MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on fourth MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications

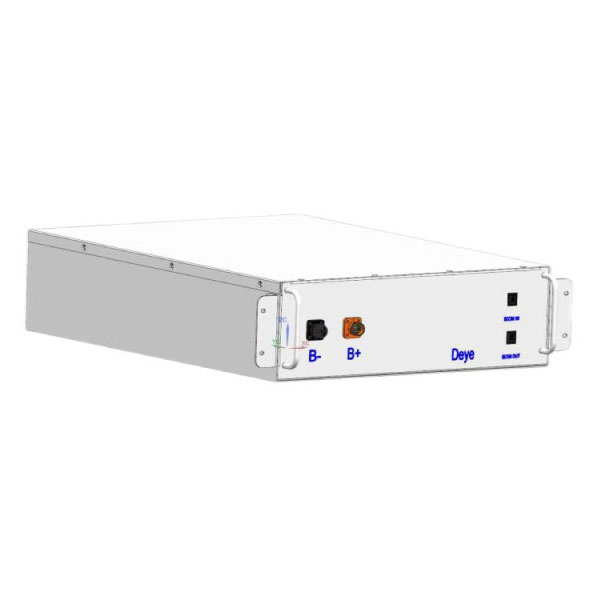

- Deye 5.12kWh 100Ah LiFePo4 High Voltage Lithium Ion Battery
- Model DEYE-HV-5.12-BOS-G
- Safe and Reliable, LiFePo4 with Safety Performance and Long Cycle Life
- Intelligent BMS, Protection Functions Including Over-Discharge, Over-Charge, Over-Current & Over-High or Low Temperature
- Eco-Friendly, Non-Toxic, Non-Polluting & Environmentally Friendly
- Convenient Installation and Maintenance
- Flexible Configuration
- Wide Working Temperature Range
- Battery Type: LiFePO4 (LFP)
- Nominal Voltage: 51.2Vdc
- Rated Capacity: 100Ah
- Rated Energy: 5.12kWh
- Nominal Charge/Discharge Current: 100A
- Peak Discharge Current: 125A
- Charge Temperature: 0°C to 55°C
- Discharge Temperature: -20°C to 55°C
- Storage Temperature: 0°C to 35°C
- Ingress Protection: IP20
- Battery Module Configuration (Not Included – Sold Separately):
- 110mm Communication Cable
- 200mm Power Cable
- Weight: 44Kg
- Dimensions (W x D x H): 440 x 570 x 133 mm
- 10 Year Limited Product Warranty. T & C’s Apply

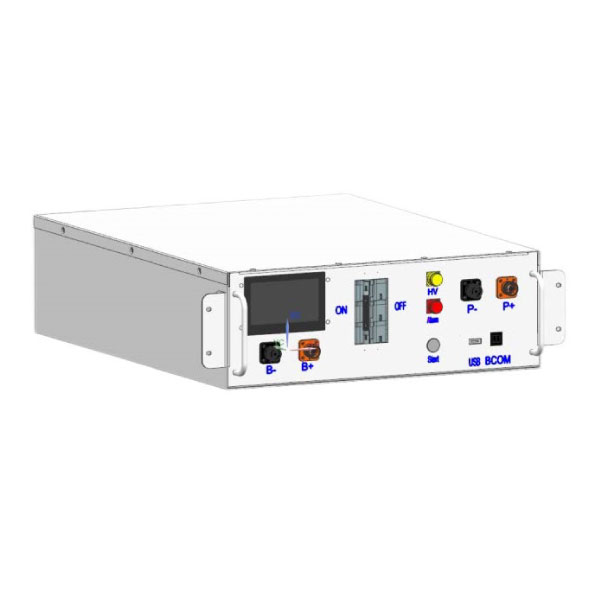

- Deye High Voltage Control Box for BOS-G
- Model DEYE-BMU-BOS-G
- Operating Voltage: 120Vdc to 750Vdc
- Nominal Charge/Discharge Current: 100A
- Maximum Charge/Discharge Current: 125A
- DC Input Rating: 12±2%V/4.15A
- Operating Temperature Range: -20°C to 55°C
- Ingress Protection: IP20
- Weight 15.5Kg
- Dimensions (W x D x H): 440 x 570 x 150 mm
- High Voltage Box Standard Configuration (Not Included – Sold Separately):
- 120 ohm Terminal Resistance
- 140mm Communication Cable
- 220mm Power Cable
- EPcable2.0 (1000V/4AWG Red-Cable)
- ENcable2.0 (1000V/4AWG Black-Cable)
- Deye Rack for 12 x High Voltage Batteries
- Model DEYE-RACK-BOS-G
- Rack for Deye 5.12kWh 100Ah LiFePo4 High Voltage Lithium Ion Battery – DEYE-HV-5.12-BOS-G (Not Included – Sold Separately)
- Quick Installation Standard of 19-inch Embedded Designed Module is Comfortable for Installation & Maintenance.
- Fits 12 x HV Batteries & 1 x HV Battery Cluster Control Box
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
