Description

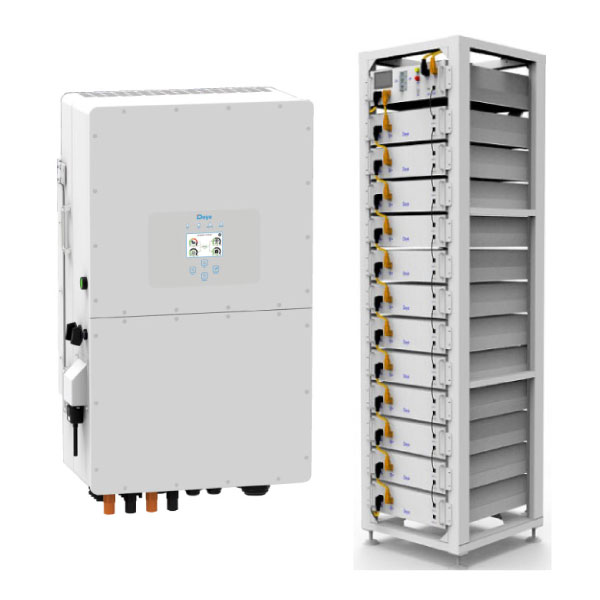

- Deye 50kW Inverter & Battery Combo Deal – Deye 50kW Inverter & 24 x Deye 5kW 100Ah High Voltage Lithium Ion Batteries
- Whats Included:
- 1 x Deye 50kW Hybrid Inverter (3 Phase) – SUN-50K-SG01HP3-EU
- 24 x Deye 5.12kWh 100Ah LiFePo4 High Voltage Lithium Ion Battery – DEYE-HV-5.12-BOS-G
- 2 x Deye High Voltage Control Box For BOS-G – DEYE-BMU-BOS-G
- 2 x Deye Rack For 12 X High Voltage Batteries – DEYE-RACK-BOS-G
More Details:
- Deye 50kW Hybrid Inverter (3 Phase)
- Model SUN-50K-SG01HP3-EU
- 100% Unbalanced output for each phase.
- Wi-Fi Ready – works via Solarman App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- Maximum output of up to 50% rated power.
- DC Couple & AC Couple to retrofit existing solar system.
- Maximum 10pcs parallel for on-grid & off-grid operation – Multiple batteries parallel supported.
- High Voltage Battery & Higher Efficiency.
- 6 Time periods for battery charge/discharge.
- Storing energy from diesel generator supported.
- Grid Type: Three Phase
- Protection Degree: IP65
- Noise Level: <45dB
- Maximum Charge/Discharge Current: 100A
- Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
- Maximum DC Input Power: 65000W
- Maximum DC Input Voltage: 1000V
- MPPT Range: 150-850V
- 4 x MPPT
- Start-up Voltage: 180V
- AC Output & UPS Power: 50000W
- Maximum AC Output Power: 55000W
- Maximum Efficiency: 97.60%
- Euro Efficiency: 97%
- MPPT Efficiency: 99.90%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 160-800V
- Communication with BMS: CAN/RS485
- Smart Cooling
- Operation Temperature: -40°C to 60°C, 45°C Derating
- Installation Type: Wall Mounted.
- Weight: 75Kg
- Dimensions (W x H x D): 527 x 894 x 294 mm
- 5 Year Product Warranty (Extended to 10 Years if paired with Deye Battery). T & C’s Apply
- Recommended Solar Panel Configuration:
- Min 5 Panels – Max 112 Panels (Refer to breakdown below for Panel set up per MPPT)
- First MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on first MPPT)
- Second MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on second MPPT)
- Third MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on third MPPT)
- Fourth MPPT: Min 5 Panels – Max 28 Panels (Panel Size: 220W to 560W Panels) (Up to 16 Panels on fourth MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
- Deye 5.12kWh 100Ah LiFePo4 High Voltage Lithium Ion Battery
- Model DEYE-HV-5.12-BOS-G
- Safe and Reliable, LiFePo4 with Safety Performance and Long Cycle Life
- Intelligent BMS, Protection Functions Including Over-Discharge, Over-Charge, Over-Current & Over-High or Low Temperature
- Eco-Friendly, Non-Toxic, Non-Polluting & Environmentally Friendly
- Convenient Installation and Maintenance
- Flexible Configuration
- Wide Working Temperature Range
- Battery Type: LiFePO4 (LFP)
- Nominal Voltage: 51.2Vdc
- Rated Capacity: 100Ah
- Rated Energy: 5.12kWh
- Nominal Charge/Discharge Current: 100A
- Peak Discharge Current: 125A
- Charge Temperature: 0°C to 55°C
- Discharge Temperature: -20°C to 55°C
- Storage Temperature: 0°C to 35°C
- Ingress Protection: IP20
- Battery Module Configuration (Not Included – Sold Separately):
- 110mm Communication Cable
- 200mm Power Cable
- Weight: 44Kg
- Dimensions (W x D x H): 440 x 570 x 133 mm
- 10 Year Limited Product Warranty. T & C’s Apply
- Deye High Voltage Control Box for BOS-G
- Model DEYE-BMU-BOS-G
- Operating Voltage: 120Vdc to 750Vdc
- Nominal Charge/Discharge Current: 100A
- Maximum Charge/Discharge Current: 125A
- DC Input Rating: 12±2%V/4.15A
- Operating Temperature Range: -20°C to 55°C
- Ingress Protection: IP20
- Weight 15.5Kg
- Dimensions (W x D x H): 440 x 570 x 150 mm
- High Voltage Box Standard Configuration (Not Included – Sold Separately):
- 120 ohm Terminal Resistance
- 140mm Communication Cable
- 220mm Power Cable
- EPcable2.0 (1000V/4AWG Red-Cable)
- ENcable2.0 (1000V/4AWG Black-Cable)
- Deye Rack for 12 x High Voltage Batteries
- Model DEYE-RACK-BOS-G
- Rack for Deye 5.12kWh 100Ah LiFePo4 High Voltage Lithium Ion Battery – DEYE-HV-5.12-BOS-G (Not Included – Sold Separately)
- Quick Installation Standard of 19-inch Embedded Designed Module is Comfortable for Installation & Maintenance.
- Fits 12 x HV Batteries & 1 x HV Battery Cluster Control Box
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
