Description

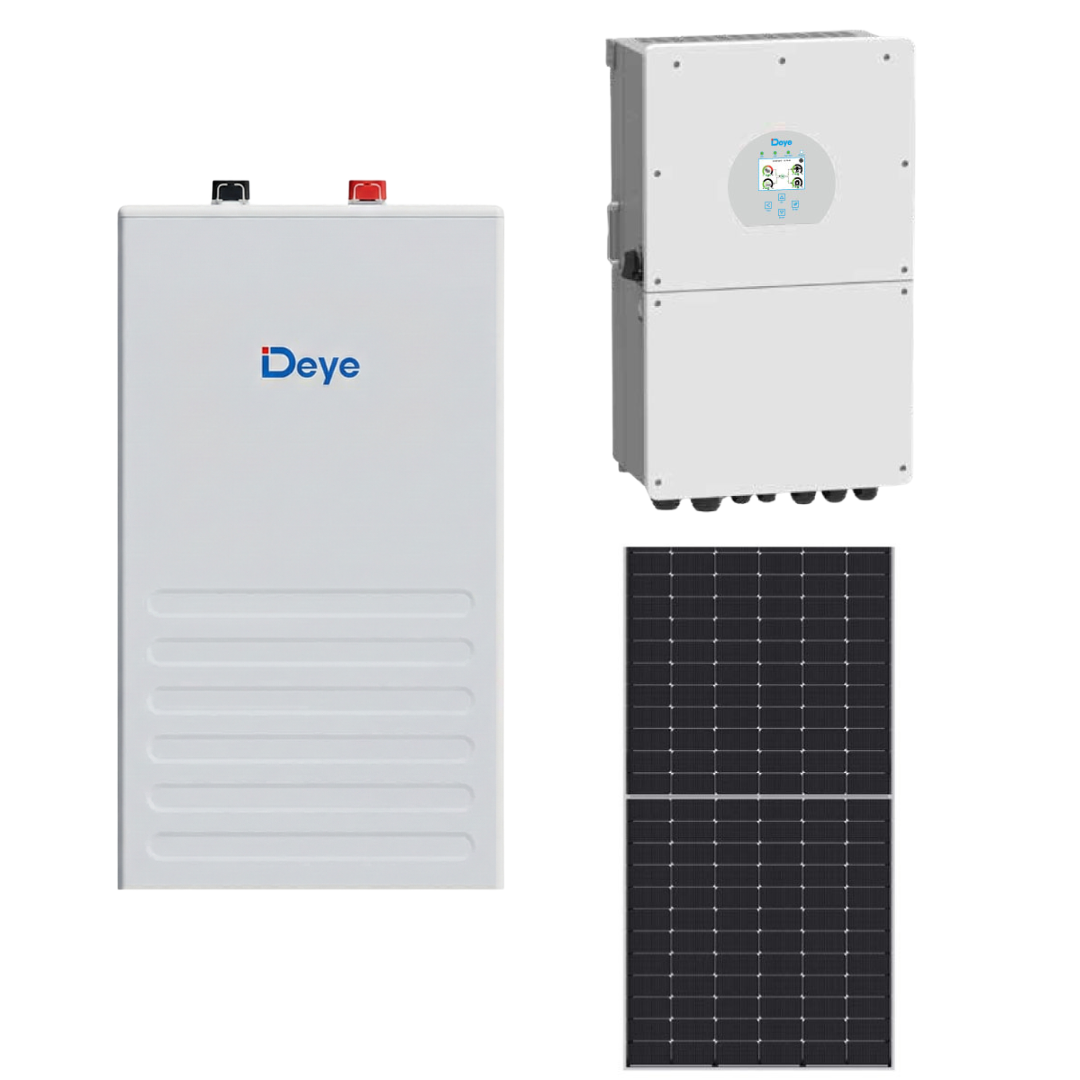

- Deye 16kW Solar, Inverter & Battery Combo Deal – 1 x Deye 16kW Inverter, 2 X 16kW Deye Wall-Mounted Battery & 24 X Tier 1 solar panels
- Whats Included:
- 24 x Tier 1 solar panels – specific brand & subject to stock availability
- 1 x Deye 16kW Hybrid Inverter (1 Phase) – SUN-16K-SG01LP1-EU
- 2 x Deye 16kW Wall-Mounted LiFePO₄ Battery – SE-F16
More Details:
- Tier 1 solar panels –
- Specific brand & subject to stock availability – Tier 1 panels include Aiko, JA Solar, Canadian Solar, Jinko, Longi, Trina, Astronergy, Seraphim, TCL Solar, Megatron, NT Solar, Hanersun, Osda and Resun. Panels are available in sizes ranging from 340W up to 715W.
- Mounting Kits & Accessories Not Included – Sold Separately.
- Certain panel brands & models may require additional payment.
- Panels subject to availability in the area.
- T & C’s Apply
- Deye 16kW Hybrid Inverter (1 Phase)
- Model SUN-16K-SG01LP1-EU
- Equipped with colourful touch LCD.
- Wi-Fi Ready – works via Solarman App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- DC Couple & AC Couple – retrofit existing solar system.
- Maximum 16pcs parallel for on-grid & off-grid operation – multiple battery parallel supported.
- 6 Time periods for battery charge/discharge.
- Storing energy from diesel generator supported.
- Grid Type: Single Phase
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge/Discharge Current: 290A
- Charging Strategy for Lithium Ion Battery: Self-adaption to BMS
- Maximum DC Input Power: 20800W
- Maximum DC Input Voltage: 500V
- MPPT Range: 150-425V
- 3 x MPPT
- Start-up Voltage: 125V
- AC Output & UPS Power: 16000W
- Backup Power: 14000W
- Backup Rated Current: 60.9A
- Backup UPS: 6ms Auto switchover time.
- Maximum Efficiency: 97.60%
- Euro Efficiency: 96.50%
- MPPT Efficiency: 99.90%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 40-60V
- Communication with BMS: CAN/RS485
- Smart Cooling
- Operation Temperature: -45°C to 60°C, >45°C Derating
- Installation Type: Wall Mounted.
- Weight: 48.5Kg
- Dimensions (W x H x D): 464 x 798.4 x 300 mm
- 5 Year Product Warranty (Extended to 10 Years if paired with Dyness/Volta Battery). T & C’s Apply
- Recommended Solar Panel Configuration:
- Min 3 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
- First MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
- Second MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
- Third MPPT: Min 3 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
- Deye 16kW Wall-Mounted LiFePO₄ Battery – SE-F16
- Model SE-F16
- The Deye SE-F16 is a high-performance 16 kWh LiFePO₄ battery designed for reliable energy storage in residential and commercial applications.
- Built with advanced BMS technology and natural cooling, it provides long-lasting performance, flexible scalability, and smart monitoring capabilities for modern ESS setups
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Capacity: 314 Ah / 16 kWh
- Nominal Voltage: 51.2 V (44.8 – 57.6 V operating range)
- Maximum Charge Current: 160 A (230 A peak for 10 s)
- Maximum Discharge Current: 160 A (230 A peak for 10 s)
- Depth of Discharge: 90% DoD
- Scalability: Up to 32 units in parallel (64 with CAN Box)
- Operating Temperature: –20 °C to 55 °C
- Storage Temperature: –35 °C to 55 °C
- Humidity: ≤ 95% (non-condensing)
- Installation: Wall-Mounted / Floor-Mounted / Stack-Mounted
- Protection: Advanced BMS with active fuse, IP21 rated housing
- LED Indicator & Buzzer: Displays SOC and operating status
- Communication: CAN2.0, RS485, Bluetooth + APP support
- Smart Energy Integration: Compatible with Deye Smart Energy Management System for load control and monitoring
- Dimensions (W × H × D): 400 × 708 × 233 mm
- Warranty: 5 years
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
