Description
- 5kW Entry Level Starter Kit Inverter & Battery Combo Deal – Luxpower 5kW Inverter & 2 X 100Ah 25.6V Raystech Lithium Ion Batteries
- Whats Included:
- 1 x Luxpower 5kW Off Grid Inverter – SNA5000
- 2 x Raystech 25.6V 100Ah Lithium Ion Battery – RT-2560SP PRO
More Details:
- Luxpower 5kW Off Grid Inverter
- Model HF2430S60-100
- All-In-One Solar Charge Inverter.
- Equipped with LCD Screen, LED Indicators & Touch Button.
- Integrates solar energy which means charging energy storage.
- Full digital voltage & current double loop control, advanced SPWM Technology & output of Pure Sine Wave.
- Equipped with x2 Output Modules: Main bypass & Inverter output and Uninterrupted power supply.
- x4 Charging Modes Available: Only Solar, Mains Priority, Solar Priority and Mains & Solar Hybrid Charging.
- Advanced MPPT Technology with an efficiency of 99.9%
- On/Off Rocker switch for AC Output control.
- Power saving mode available – reduces no-load loss.
- Intelligent variable speed fan – efficiently dissipates heat & extends system life.
- Allows access of Lead-acid battery & lithium battery.
- Lithium battery activation – by both mains & PV.
- Equipped with multiple protection functions: Overload, short circuit & over current.
- User-friendly communication modules: RS485 (GPRS, Wi-Fi, Bluetooth), CAN, USB etc.
- Suitable for computer, mobile phones, internet monitoring & remote operations.
- Rated Input Voltage: 220/230V
- Frequency: 50/60Hz (Auto Detection)
- Output Voltage Waveform: Pure Sine Wave
- Rated Output Power: 3000W
- Rated Output Voltage: 230V
- Loaded Motor Capacity: 2HP
- Rated Battery Input Voltage: 24V
- Power Saving Mode: Load ≤25W
- Battery Type: Lead Acid or Lithium Battery
- Max Charge Current: 80A
- Max PV Open Circuit Voltage: 100Vdc
- PV Operating Voltage Range: 30-100Vdc
- MPPT Voltage Range: 30-95Vdc
- Battery Voltage Range: 18-33Vdc
- Operating Temperature: -15°C to 55°C
- Storage Temperature: -25°C to 60°C
- Noise Level: ≤60dB
- Weight: 6.2Kg
- Dimensions (L x W x D): 378 x 280 x 103 mm
- 2 Year Limited Product Warranty. T & C’s Apply
- Free Delivery Nationwide – South Africa
- Recommended Solar Panel Configuration:
- Min 3 Panels – Max 12 Panels (Panel Size: 180W to 480W Panels) (6 Panels per MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications

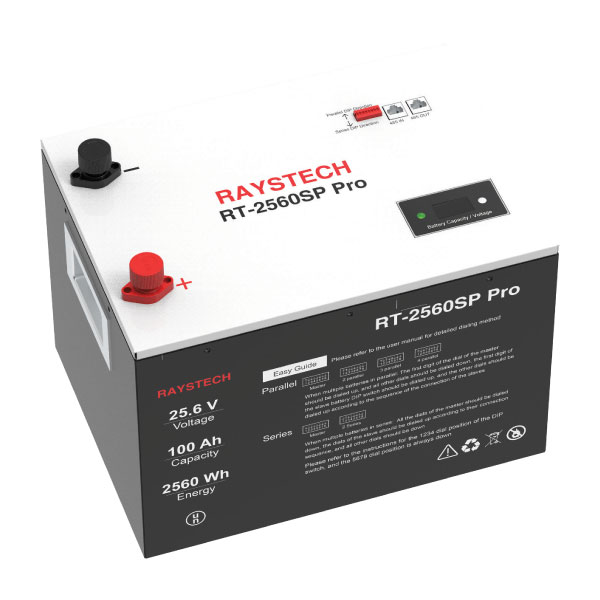

- Raystech 25.6V 100Ah Lithium Ion Battery
- Model RT-2560SP PRO
- 4 Batteries Connected In Parallel Supported.
- External Connections In Series with Voltage up to 51.2V
- Active balancing function between batteries – true parallel with RS485 Communication.
- Quick Connection & Insulation Protection.
- Equipped with High-Resolution, Low-Power OLED – shows battery power & voltage, soft switch design.
- Stainless Steel Handles – high durability, easy to carry & 3000 fatigue tests guaranteed.
- Rugged Stainless Steel Body – wonderful looking & durable.
- Nominal Voltage: 25.6V
- Nominal Capacity: 100Ah
- Charge Voltage: 29.2V
- Discharge Current Max Continuous: 50A
- Discharge Current Max Continuous: 100A
- Discharge Voltage Minimum: 20.8V
- Pulse Current: 125A
- Weight: 22.9±0.5Kg
- Dimensions (L x W x H): 360 x 260 x 250 mm
- Refer To Brochure For Detailed Product Specifications.
- 2 Year Limited Product Warranty. T & C’s Apply
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
