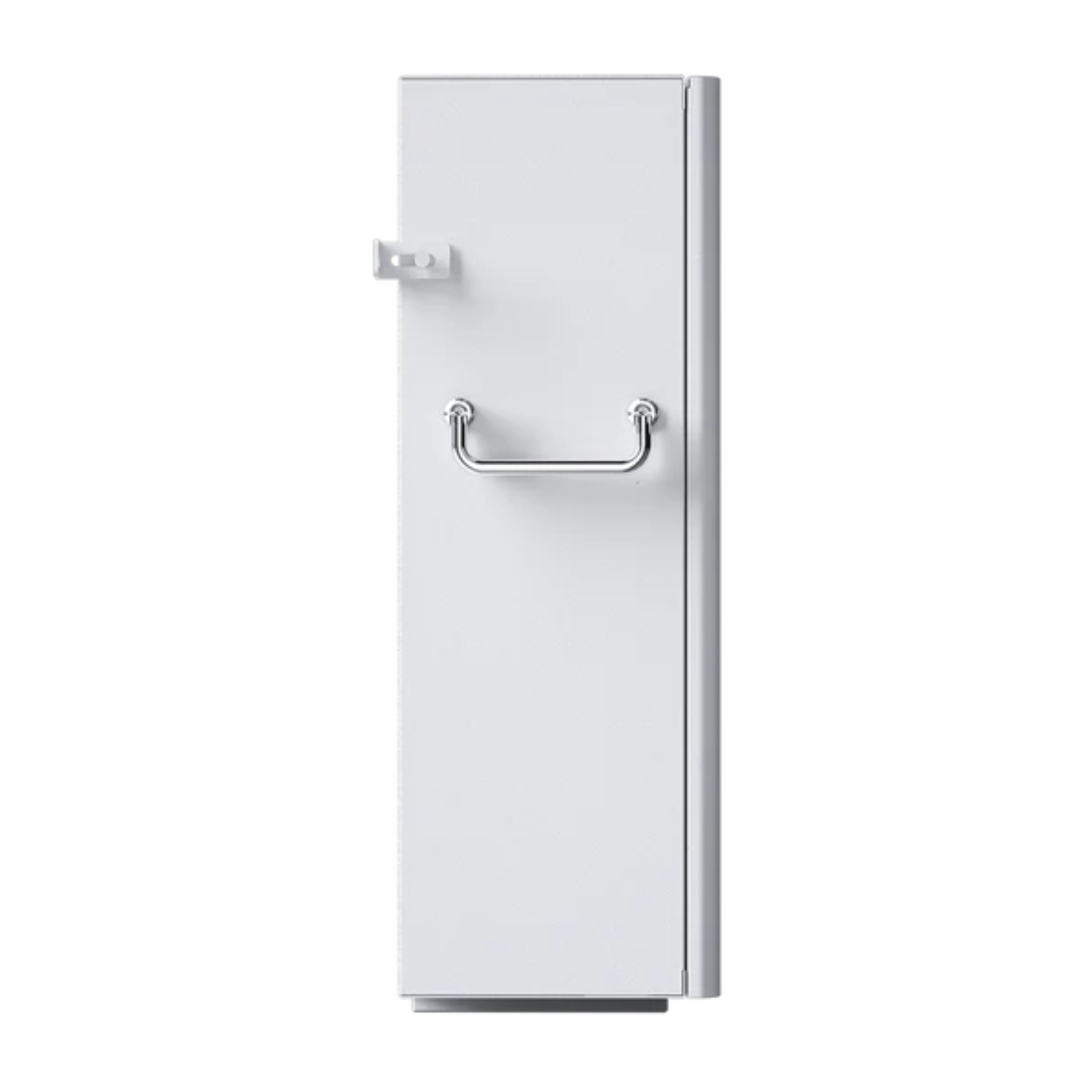

The Hinen B5000 5kWh Low-Voltage Battery is a rechargeable Li-ion battery pack designed for reliable energy storage with strong safety protection and flexible installation. Built with LFP battery type, IP65 ingress protection and a 5-layer battery protection system, it is made to perform in demanding environments while supporting safe, efficient battery operation. The B5000 offers 5.12kWh rated energy, 4.6kWh usable capacity, 90% depth of discharge and up to 8000 cycles, making it a practical choice for low-voltage battery storage applications. With visible energy tracking, remote upgrade support on the Hinen app, wall-mounted or floor stand installation and future-proof scalability from 5kWh to 50kWh, the Hinen B5000 is built for dependable long-term energy storage.
| Battery Configuration | 16S1P |
| Battery Module Capacity | 5.12 kWh |
| Cycle Life | 8000 |
| Dimensions | (W)579 x (H)500 x (D)175mm |
| Installation | Wall Mounted/Floor Stand |
| Maximum Discharge Current | 100 A |
| Maximum Modules in Parrallel | 6 |
| Operating Voltage Range | 48-58V |
| Rated Power Output | 5.12 kW |
| Short Circuit Current | 800A @ 0.1ms |
| Weight | 51.8 kg |
| Voltage | 51.2V |
| Battery Chemistry | LiFePO4 |
| Cycle Life | 8000 cycles |
| Usable Capacity | 4.6 kWh |
| IP Rating | IP65 |
| Warranty | 10 years |
| MPN | B5000 |
