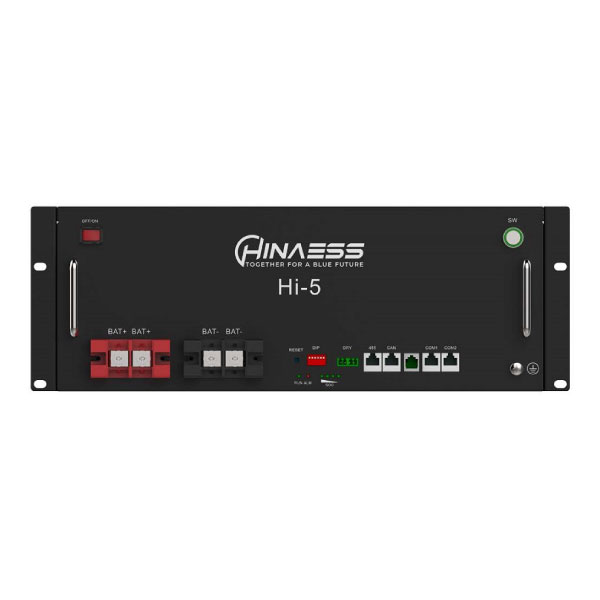

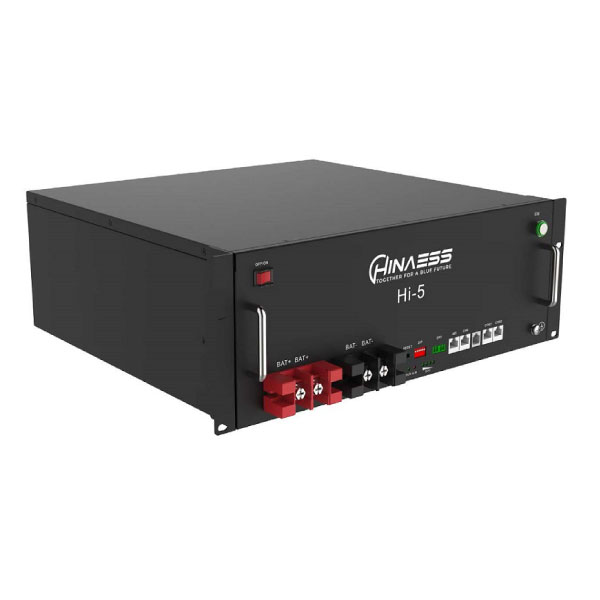

The HinaESS 5.12kWh 100Ah Lithium Ion Battery is a reliable energy storage solution for solar and backup power systems, designed for residential and commercial applications that need dependable lithium battery performance.
| Cell Type | LFP |
| Certification | CE UN38.3 IEC62619 |
| Charge Voltage | 56.5V |
| Communication channels | CAN/RS485 |
| Compatibility | Inverters: Victron, Luxpower, Deye, Voltronic, SMA Goodwe, Growatt, Sofar, Solark, SRNE, Must |
| Cycle Life | 6000 Cycles |
| Dimensions | 481 x 452.6 x 165mm |
| Maximum Charge Current | 100 A |
| Maximum Discharge Current | 100 A |
| Maximum Modules in Parrallel | Up to 32 units parallelable w/o extra device needed, slave battery drops offline or come back alive does not affect system running. |
| Parallel Connection Available | Yes |
| Peak Discharge Current | 105A / 15s, 120A / 0.5s |
| Rated Capacity | 100Ah |
| Rated Power | 5.12kWh |
| Rated Voltage | 51.2V |
| Weight | 50 kg |
| Operating Temp (Min) | -20 °C |
| Operating Temp (Max) | 55 °C |
| IP Rating | IP20 |
| Warranty | 10 years |
| MPN | Hi-5 |
