Description

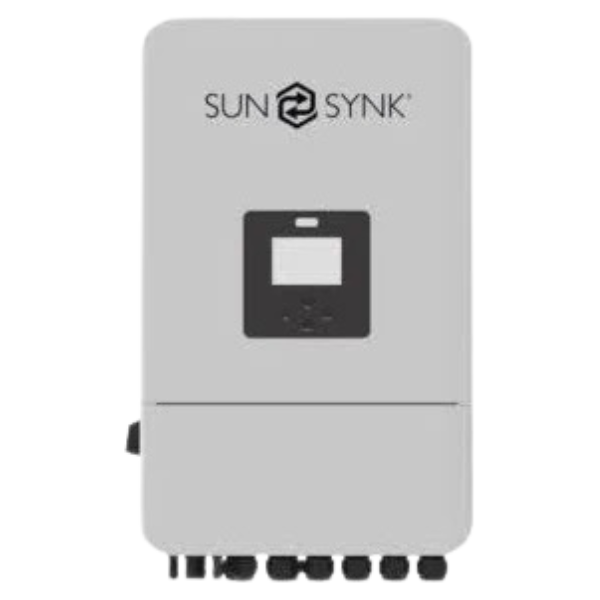

- SUNSYNK 5kW Hybrid Compact Inverter (1 Phase) – SYNK-5K-SG04LP1-SM2
- Model SYNK-5K-SG04LP1-SM2
- Wi-Fi Ready – works via Sunsynk App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- Compatible with Lead-acid or Li-Ion Batteries.
- Can not be paralleled with Classic and Lynks range of inverters. (Only parallel Compact with Compact)
- Self-Adapting Charging Strategy for Li-Ion Battery (BMS Integration).
- IP65 Protection Level – Suitable for Indoor or Outdoor Installation.
- Dual MPPT Design – 2 MPPTs (1 String per MPPT).
- High PV Input Capacity – Supports up to 10000W PV Access Power.
- Advanced Protection Features – Includes DC polarity reverse protection, AC overcurrent/overvoltage protection, short circuit protection, thermal protection, and more.
- Optional AFCI Protection Available.
- Battery Voltage Range: 40Vdc – 60Vdc
- Max Charging/Discharging Current: 120A
- Max PV Access Power: 10000W
- Max PV Input Power: 8000W
- Max PV Input Voltage: 500V
- Start-up Voltage: 125V
- PV Input Voltage Range: 125V – 500V
- MPPT Voltage Range: 150V – 425V
- Full Load MPPT Voltage Range: 300V – 425V
- Rated PV Input Voltage: 370V
- Rated AC Output Power: 5000W
- Max AC Apparent Power: 5500VA
- Peak Power (Off-Grid): 2x Rated Power (10s)
- Rated AC Voltage: 220V / 230V
- Grid Frequency: 50/60Hz
- Operating Temperature: -40°C to 60°C (>45°C Derating)
- Altitude: ≤2000m
- Noise Level: <30dB
- Communication: RS232, RS485, CAN
- Monitoring Options: GPRS / Wi-Fi / Bluetooth / 4G / LAN (Optional)
- Display: LCD + LED
- Cooling Type: Natural Cooling
- Ingress Protection: IP65
- Weight: 19kg
- Dimensions (W x H x D): 376 × 470 × 241.5 mm
- Does Not Include Power Cables & Communication Cables (Sold Separately)
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- 5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery). T & C’s Apply
- Free Delivery Nationwide – South Africa
