Description

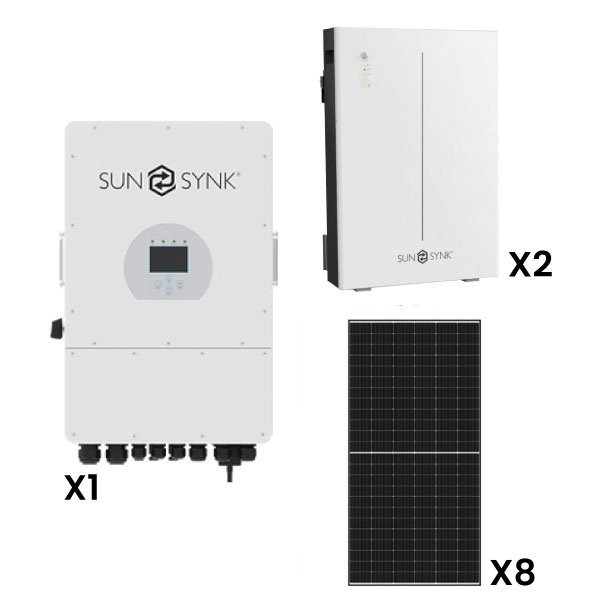

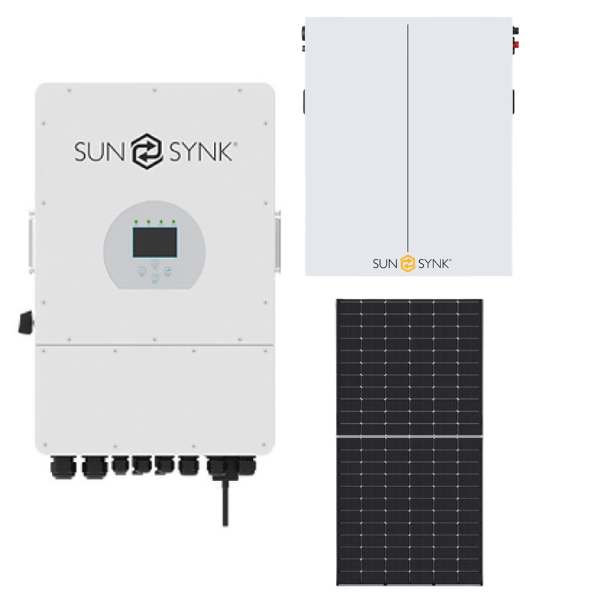

- Sunsynk 12kW Solar, Inverter & Battery Combo Deal – 1 X Sunsynk 12kW Inverter, 2 X 10kW Sunsynk Lithium Ion Battery & 8 X Tier 1 solar panels
- Whats Included:
- 8 x Tier 1 solar panels – specific brand & subject to stock availability
- 1 x SUNSYNK 12kW Hybrid Inverter (3 Phase) – SUN-12K-SG04LP3
- 2 x SUNSYNK 10kW 200Ah LiFePo4 Lithium Ion Battery – SUN-X-10.24-F
More Details:
- Tier 1 solar panels –
- Specific brand & subject to stock availability – Tier 1 panels include Aiko, JA Solar, Canadian Solar, Jinko, Longi, Trina, Astronergy, Seraphim, TCL Solar, Megatron, NT Solar, Hanersun, Osda and Resun. Panels are available in sizes ranging from 340W up to 715W.
- Mounting Kits & Accessories Not Included – Sold Separately.
- Certain panel brands & models may require additional payment.
- Panels subject to availability in the area.
- T & C’s Apply
- SUNSYNK 12kW Hybrid Inverter
- Model SUN-12K-SG04LP3
- Wi-Fi Ready – works via Sunsynk App.
- Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
- The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool.
- Manages Power Flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
- Easy & Simple to Understand LCD Display.
- Wi-Fi & GSM monitoring supported.
- Equipped with Visual power flow screen.
- Built-In 2 strings for 1 MPP tracker & 1 string for 1 MPP tracker.
- Smart settable 3-stage MPPT charging – optimised battery performance.
- Auxiliary load function.
- Parallel (coming soon)/multi-inverter function – grid-tied & off-grid.
- 230V/400V Three-Phase Pure Sinewave Inverter.
- Grid Type: Three Phase.
- Protection Degree: IP65
- Noise Level: <30dB
- Maximum Charge & Discharge Current: 240A
- Battery Charging Strategy: Self-Adaptation to BMS
- Maximum DC Input Power: 15000W
- MPPT Range: 140-800V
- Start-up Voltage: 160V
- AC Output & UPS Power: 12000W
- Maximum AC Power: 13200W
- AC Output Rated Current: 17.4A
- Maximum AC Output Current: 19.1A
- Maximum Efficiency: 97.60%
- MPPT Efficiency: 97.0%
- Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
- Battery Voltage Range: 40-60V
- Communication with BMS: CAN/RS485
- Fan Cooling
- Operation Temperature: -25°C to 60°C
- Installation Type: Wall Mounted.
- Weight: 45Kg
- Dimensions (L x W x H): 673 x 462 x 265 mm
- 5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery). T & C’s Apply
- Recommended Solar Panel Configuration:
- Min 3 Panels – Max 28 Panels (Refer to breakdown below for Panel set up per MPPT)
- First MPPT: Min 3 Panels – Max 14 Panels (Panel Size: 220W to 560W Panels) (Up to 14 Panels on first MPPT)
- Second MPPT: Min 3 Panels – Max 14 Panels (Panel Size: 220W to 480W Panels) (Up to 14 Panels on second MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
- SUNSYNK 10kW 200Ah LiFePo4 Lithium Ion Battery
- Model SUN-X-10.24-F
- Convenient Wall-Mounted or Floor Installation.
- Safe & Reliable LiFePO₄ Battery Chemistry.
- IP65 Protection Level – Suitable for Indoor or Outdoor Installation.
- Flexible Scalability – Recommended ≤3 Units (Max. 8 in Parallel).
- Depth of Discharge: 95%.
- High Cycle Life: >6000 Cycles @ 25°C @ 0.5C.
- Nominal Capacity: 200Ah
- Rated Voltage: 51.2V
- Operating Voltage Range: 43.2Vdc – 57.6Vdc
- Nominal Energy: 10.24kWh
- Max Charge Current: 100A
- Max Discharge Current: 150A
- Operating Temperature:
- Charge: -8°C to 55°C
- Discharge: -18°C to 55°C
- Humidity: 5–95% RH (No Condensation)
- Altitude: <2000m
- Communication: RS485, CAN, Wi-Fi (Optional)
- Installation Type: Wall-Mounted or Floor-to-battery
- Weight: 101kg
- Dimensions (W x D x H): 600 x 184 x 750 mm
- 5 Year Limited Product Warranty. T & C’s Apply
- Does Not Include Power Cables & Communication Cables for Inverters & Batteries (Sold Separately)
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
- Free Delivery Nationwide – South Africa
- Pre order now! Stock arriving mid-May
