Description

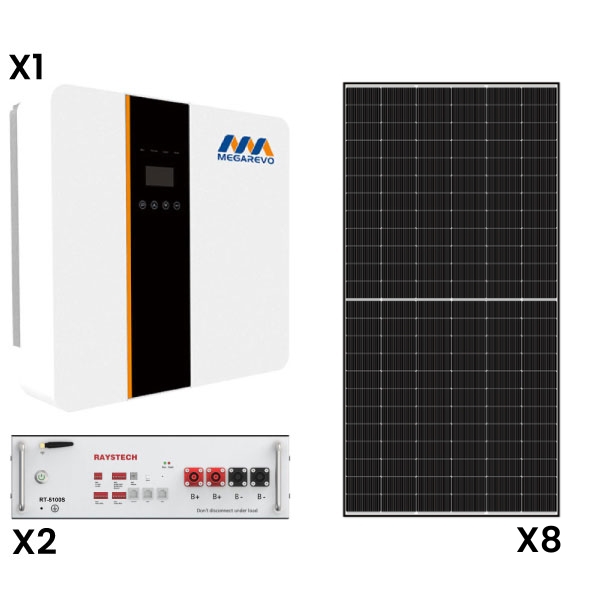

- Megarevo 5kW Solar, Inverter & Battery Combo Deal – 1 X Megarevo 5kW Inverter, 2 X 5.12Kwh Raystech Lithium Ion Battery & 8 X Sunova 585W Solar Panels
- Whats Included:
- 8 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panel – SS-585-72MDH(T)
- 1 x MEGAREVO 5kW Single-Phase ESS Hybrid Inverter – R5KL1
- 2 x Raystech 51.2V 5.12Kwh Lithium Ion Battery – RT-5100S
More Details:
- Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
- Model SS-585-72MDH(T)
- Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
- Combines creative technology effectively & extremely improves the module efficiency & power output.
- 585W Solar Panel.
- Equipped with 144 Cells.
- 30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
- The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
- Excellent Low Irradiance Performance.
- Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
- Industry-Leading, Lowest Thermal Coefficient.
- Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
- Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
- 100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
- Number of Cells: 144 Cells
- Cell Type: N-Type Monocrystalline.
- Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
- Silver/Black Anodized Aluminium Alloy Frame.
- Junction Box: IP68, 3 Bypass Diodes.
- Connector: MC4 Compatible.
- Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
- Maximum Power: 585W (STC) & 436W (NOCT)
- Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
- Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
- Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
- Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
- Module Efficiency: 22.60%
- Power Tolerance: 0,+5W
- Maximum System Voltage: 1500V
- Maximum Rated Fuse Current: 25A
- Current Operating Temperature: -40°C to 85°C
- Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
- Weight: 27.2Kg
- Dimensions (L x W x H): 2278 x 1134 x 30 mm
- Mounting Kits & Accessories Not Included – Sold Separately.
- 15 Year Limited Product Warranty. T & C’s Apply

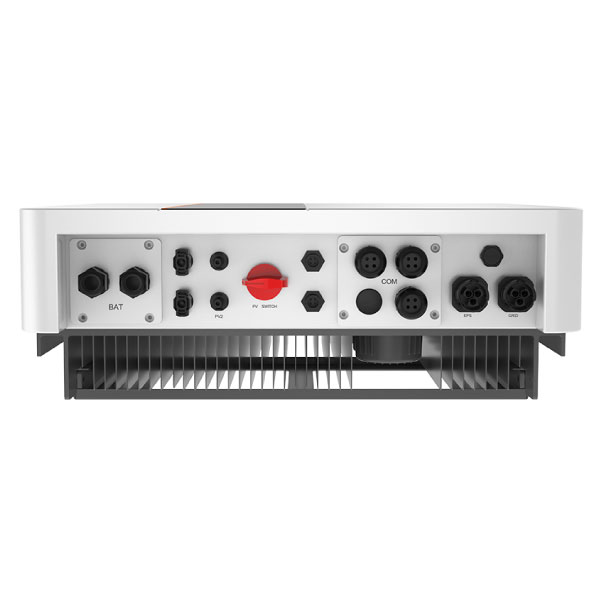

- MEGAREVO 5kW Single-Phase ESS Hybrid Inverter
- Model R5KL1
- REVO Residential Energy Storage Inverter.
- LCD Display.
- Safe & Reliable.
- Friendly & Flexible.
- Economical & Practical.
- Multi-Parallel Connection Supported.
- Diesel Generator Connection Supported.
- Lithium-ion battery compatibility.
- Intelligent EMS Management Function.
- Auto On/Off Grid Switching Function – ensures uninterrupted power.
- Ingress Protection: IP65
- Noise Level: <35dB(A)
- Maximum DC Voltage: 550V
- Battery Type: Lithium/Lead-Acid (Not Included – Sold Separately)
- Interface: CAN/RS485
- Natural Cooling.
- Operation Temperature: -25°C to 60°C
- Weight: 25Kg
- Dimensions (W x D x H): 550 x 200 x 515 mm
- 5 Year Limited Product Warranty. T & C’s Apply
- Recommended Solar Panel Configuration:
- Min 3 Panels – Max 14 Panels (Panel Size: 180W to 480W Panels) (7 Panels per MPPT)
- Min 3 Panels – Max 12 Panels (Panel Size: 560W Panels) (6 Panels per MPPT)
- Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
- Raystech 51.2V 5.12Kwh Lithium Ion Battery
- Model RT-5100S
- LFP (Lithium Ion Phosphate) – highest safety.
- Able to go up to 8 Parallel – flexible to increase capacity without any other equipments or settings.
- Get 80% of initial capacity after use of 6000 cycles.
- Integrated with Wi-Fi modem (App Controlled)
- Easy Installation.
- High-Precision SOC.
- Nominal Voltage: 51.2V
- Nominal Capacity: 5120Wh
- Usable Capacity: 4864Wh
- Voltage Range: 48 to 56V
- Charge Current: 50A
- Discharge Current: 100A
- Charge Temperature: 0°C to 50°C
- Discharge Temperature: -10°C to 55°C
- Storage Temperature: -20°C to 60°C
- Humidity: 5 to 85%
- Altitude: <2000m
- IP Rating: IP20
- Installation Type: Cabinet or Wall Mounting.
- Weight: 44±0.5Kg
- Dimensions (L x W x H): 442 x 500 x 133 mm
- Refer To Brochure For Detailed Product Specifications.
- 10 Year Limited Product Warranty. T & C’s Apply
- Refer To Brochure For Detailed Product Specifications.
- Product might vary from depicted images.
- Graphics are for illustrative purposes only.
